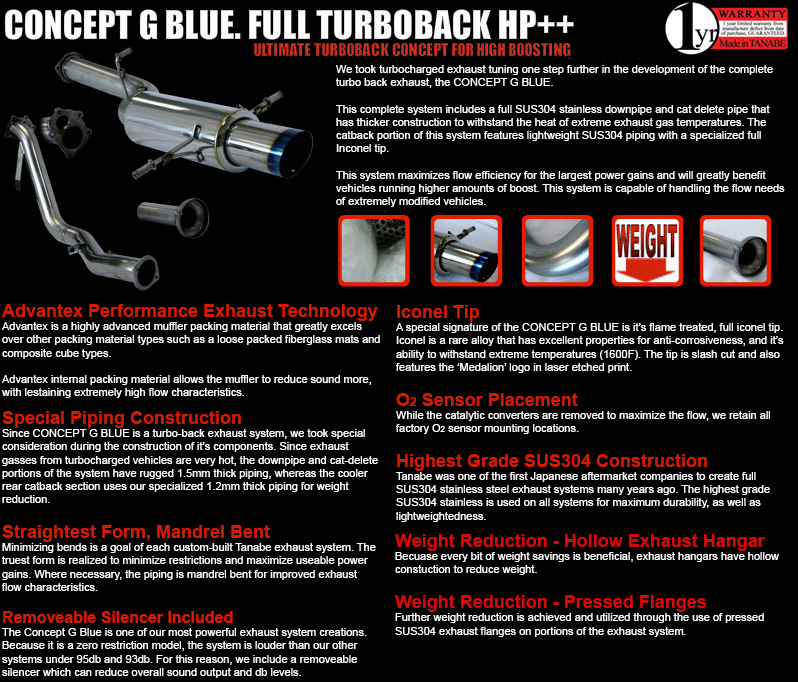

CONCEPT G BLUE. FULL TURBOBACK HP++

ULTIMATE TURBOBACK CONCEPT FOR HIGH BOOSTING

We took turbocharged exhaust tuning one step further in the development of the complete turbo back exhaust, the CONCEPT G BLUE.

This complete system includes a full SUS304 stainless downpipe and cat delete pipe that has thicker construction to withstand the heat of extreme exhaust gas temperatures. The catback portion of this system features lightweight SUS304 piping with a specialized full Inconel tip.

This system maximizes flow efficiency for the largest power gains and will greatly benefit vehicles running higher amounts of boost. This system is capable of handling the flow needs of extremely modified vehicles.

Advantex Performance Exhaust Technology

Advantex is a highly advanced muffler packing material that greatly excels over other packing material types such as loose packed fiberglass mats and composite cube types.

Advantex internal packing material allows the muffler to reduce sound more, with less material, while maintaining extremely high flow characteristics.

Inconel Tip

A special signature of the Concept G Blue is its flame treated, full inconel tip. Inconel is a rare alloy that has excellent properties for anti-corrosiveness, and its ability to withstand extreme temperatures (1600F). the tip is slash cut and also features the "Medalion" logo in laser-etched print.

O2 Sensor Placement

While the catalytic converters are removed to maximize the flow, we retain all factory O2 sensor mounting locations.

Highest Grade SUS304 Construction

Tanabe was one of the first Japanese aftermarket companies to create full SUS304 stainless steel exhaust systems many years ago. The highest grade SUS304 stainless is used on all systems for maximum durability, as well as lightweightedness.

Special Piping Construction

Since Concept G Blue is a turbo-back exhaust system, we took special consideration during the construction of its components. Since exhaust gasses from turbocharged vehicles are very hot, the downpipe and cat-delete portions of the system have rugged 1.5mm thick piping, whereas the cooler rear catback section uses our specialized 1.2mm thick piping for weight reduction.

Straightest Form, Mandrel Bent

Minimizing bends is a goal of each custom-built Tanabe exhaust system. The truest form is realized to minimize restrictions and maximize usable power gains. Where necessary, the piping is mandrel-bent for improved exhaust flow characteristics.

Weight Reduction - Hollow Exhaust Hangar

Because every bit of weight savings is beneficial, exhaust hangars have hollow construction to reduce weight.

Weight Reduction - Pressed Flanges

Further weight reduction is achieved and utilized through the use of pressed SUS304 exhaust flanges on portions of the exhaust system.

Removable Silencer Included

The Concept G Blue is one of our most powerful exhaust system creations. Because it is a zero restriction model, the system is louder than our other under 95db and under 93db systems. For this reason, we include a removable silencer which can reduce overall sound output and db levels.
Concept G Blue Full Turboback Application Chart
=notes =new product
=image =video
Models Chassis Year Pipe Diam. Tip Diam. Part # MSRP Media Also Compatible
Mitsubishi
3000GT VR4 90-99 80-60 100 T90034 $2,130.00 Down Pipe, Medalion Touring, Concept G Blue (Catback Only),
Lancer EVO 10 CZ4A 08-08 70-60 100 T90139 $1,830.00 DF210, NF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro SEVEN HD, CST Coilover, Sustec Z40, Down Pipe, Medalion Touring, Concept G, Concept G Blue (Catback Only), Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Lancer EVO8 CT9A 03-05 80 100 T90072 $1,280.00 DF210, NF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro SEVEN HD, CST Coilover, Sustec Z40, Down Pipe, Medalion Touring, Concept G, Concept G Blue (Catback Only), Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Lancer EVO9 CT9A 06-07 80 100 T90072 $1,280.00 DF210, NF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro SEVEN HD, CST Coilover, Sustec Z40, Down Pipe, Medalion Touring, Concept G, Concept G Blue (Catback Only), Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Nissan
240SX S13 89-94 80 100 T90070 $1,230.00 Down Pipe, Concept G, Concept G Blue (Catback Only), DF210, GF210, CST Coilover, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
240SX S14 95-98 80 100 T90011 $1,230.00 DF210, GF210, CST Coilover, Down Pipe, Concept G, Concept G Blue (Catback Only), Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Subaru
Impreza WRX 02-06 80 100 T90092 $1,240.00 Down Pipe, Medalion Touring, Concept G, DF210, NF210, GF210, Sustec Pro FIVE, CST Coilover, Sustec Z40, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Impreza WRX STI 04-06 80 100 T90092 $1,240.00 DF210, NF210, GF210, Sustec Pro FIVE, CST Coilover, Sustec Z40, Down Pipe, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Impreza WRX STI GRB 08-08 70-60 100 T90140 $1,680.00 DF210, NF210, GF210, Sustec Pro FIVE, CST Coilover, Sustec Z40, Down Pipe, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,

Concept G Blue (Catback Only) Application Chart
=notes =new product
=image =video
Models Chassis Year Pipe Diam. Tip Diam. Part # MSRP Media Also Compatible
Mitsubishi
3000GT VR4 90-99 80-60 100 T90034K $1,400.00 Down Pipe, Medalion Touring, Concept G Blue Full Turboback,
Lancer EVO 10 CZ4A 08-08 70-60 100 T90139K $1,450.00 DF210, NF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro SEVEN HD, CST Coilover, Sustec Z40, Down Pipe, Medalion Touring, Concept G, Concept G Blue Full Turboback, Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Lancer EVO8 CT9A 03-05 80 100 T90072K $940.00 DF210, NF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro SEVEN HD, CST Coilover, Sustec Z40, Down Pipe, Medalion Touring, Concept G, Concept G Blue Full Turboback, Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Lancer EVO9 CT9A 06-07 80 100 T90072K $940.00 DF210, NF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro SEVEN HD, CST Coilover, Sustec Z40, Down Pipe, Medalion Touring, Concept G, Concept G Blue Full Turboback, Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Nissan
240SX S13 89-94 80 100 T90070K $990.00 Down Pipe, Concept G, Concept G Blue Full Turboback, DF210, GF210, CST Coilover, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
240SX S14 95-98 80 100 T90011K $990.00 DF210, GF210, CST Coilover, Down Pipe, Concept G, Concept G Blue Full Turboback, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
