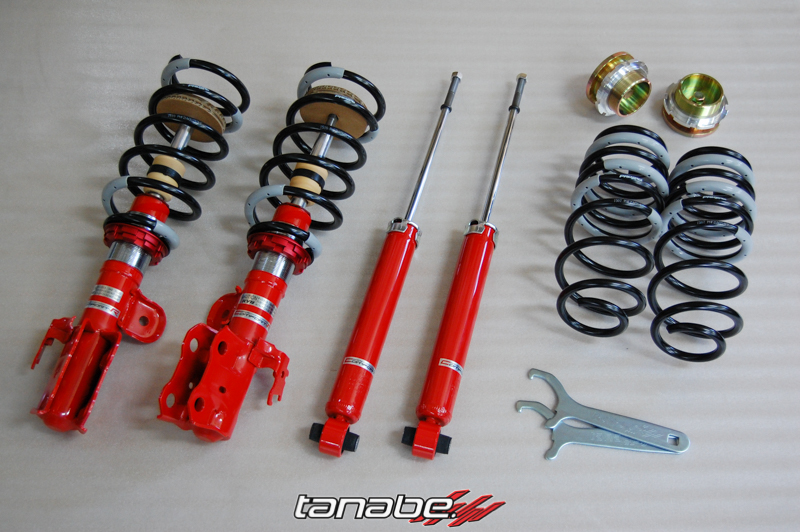

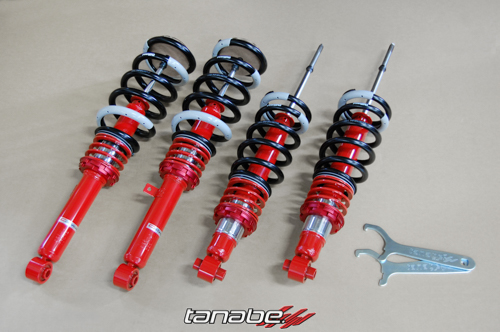

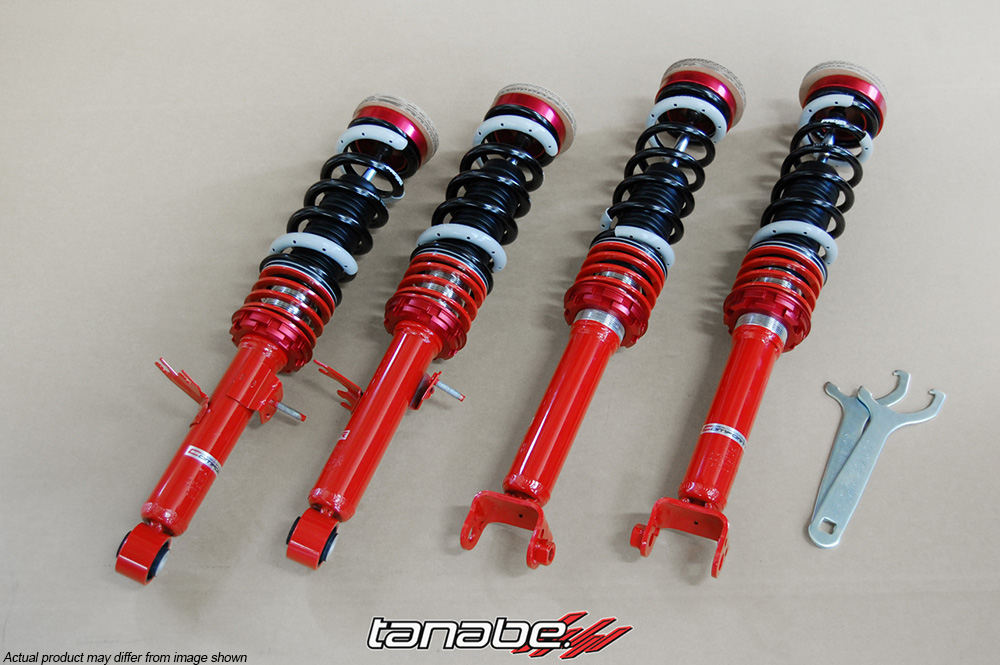

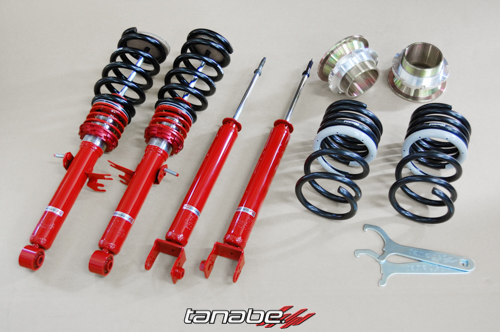

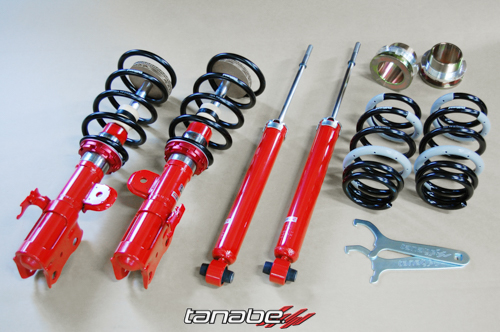

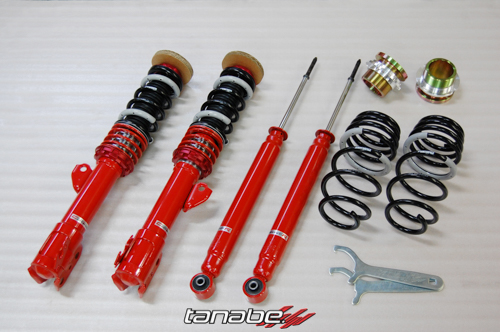

Sustec Pro CR Coilover is a brand new coilover system made by Tanabe.
Sustec Pro CR uses advanced dampers made by KYB and offers fully adjustable ride height and a twin tube design. Made and tested on every vehicle application to meet the maximum comfort levels and direct fit.
Sustec Pro CR uses the same high quality PRO210 Springs found on the SUSTEC PRO FIVE Coilover System.
These are the same springs that were used in the Reito MOLA GT-R & Keihin Real Racing HSV-010 in the JGTC GT500 Class in Japan.


Sustec Pro CR Application Chart
(all spring rates are measured in kg/mm & all lowering data is approximate)
= new product
= note

ModelsYearSpring Rates
F/R
Height Adj.
F/R*
Part #MSRPImages / VideoAlso Compatible
Honda
CR-Z (ZF1) 11-15 4.0 / 4.0 -1/4 ~ -2 in / -1 1/4 ~ -2 1/4 in TSR148 $1,090.00
Fit 09-14 5.0 / 4.0 -1/2 ~ -2 1/4 in / -1 1/2 ~ -2 1/2 in TSR143 $1,090.00 DF210, Strut Tower Bar Front,
Insight (ZE2) 10-14 4.0 / 4.0 -3/4 ~ -2 1/2 in / -1 1/2 ~ -2 1/2 in TSR148 $1,090.00 DF210,
Infiniti
G25 Sedan RWD 11-13 10.0 / 9.0 -1/4 ~ -2 3/4 in / -1/4 ~ 2 3/8 in TSR130 $1,090.00
G35 Coupe (V35) 03-07 10.0 / 8.0 - / - TSR063 $1,190.00
G35 Sedan RWD 07-08 10.0 / 9.0 -1/4 ~ -2 3/4 in / -1/4 ~ -2 3/8 in TSR130 $1,090.00
G37 Coupe RWD 08-13 10.0 / 9.0 -1/2 ~ -3 1/8 in / -1/8 ~ -1 1/2 in TSR130 $1,090.00
M37 RWD 10-12 10.0 / 4.0 -1/2 ~ -3 1/4 in / -1/2 ~ -2 3/4 in TSR158 $1,090.00 NF210,

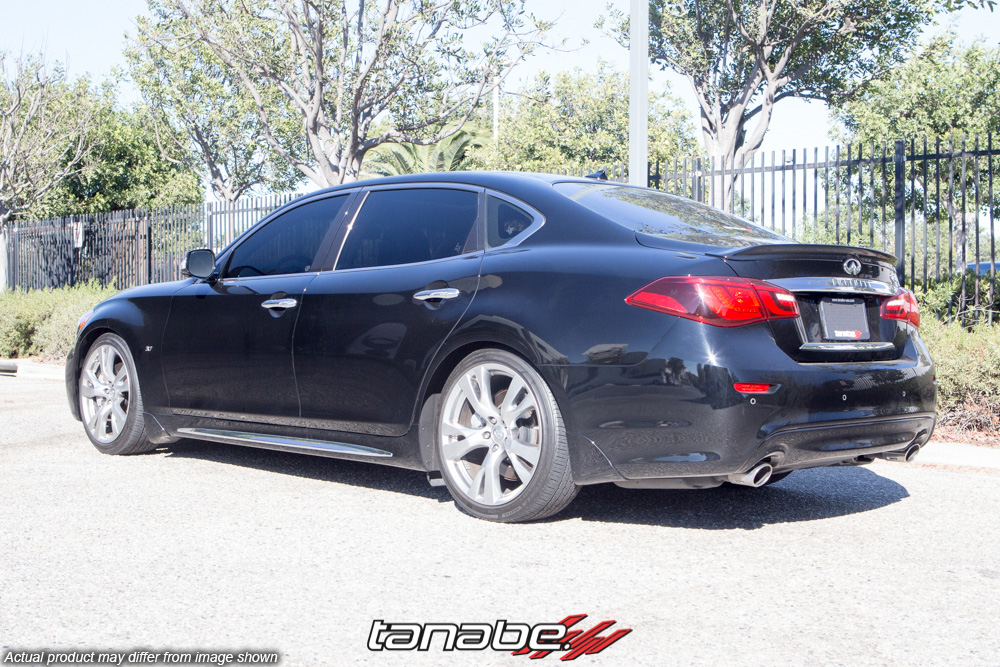

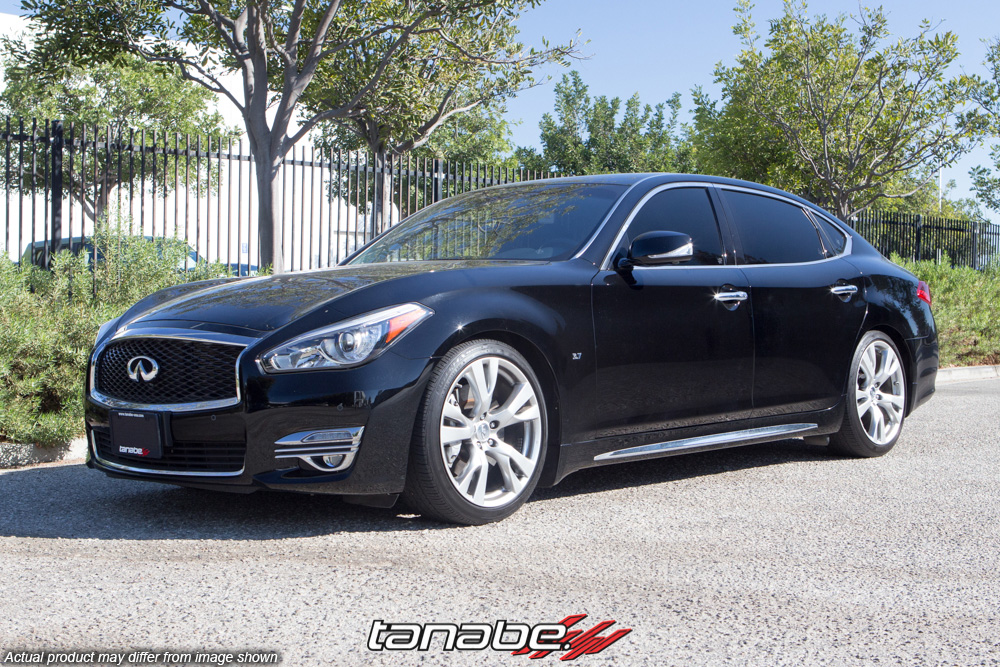

Q70L 3.7 RWD 15-15 10.0 / 4.0 -3/4 ~ -3 1/4 in / -1 ~ -2 3/4 in TSR158 $1,090.00 NF210,
Lexus
CT 200h (ZWA10L) 11-13 4.0 / 6.0 0 ~ -1 3/4 in / -3/4 ~ -1 3/4 in TSR165 $1,090.00 NF210,
GS 300 06-06 7.0 / 7.0 -1/2 ~ -2 3/4 in / +1/4 ~ -2 in TSR113 $990.00 DF210, NF210,
GS 300/400 (JZS161) 98-05 14.0 / 12.0 +1 1/2 ~ -1 1/2 in / +1 ~ -1 1/2 in TSR024 $990.00 DF210, NF210,
GS 350 07-11 7.0 / 7.0 -1/2 ~ -2 3/4 in / +1/4 ~ -2 in TSR113 $990.00 DF210, NF210,
GS 430 06-07 7.0 / 7.0 -1/2 ~ -2 3/4 in / +1/4 ~ -2 in TSR113 $990.00 DF210, NF210,
IS 250 RWD 06-13 7.0 / 7.0 +1/2 ~ -1 3/4 in / ±0 ~ -2 1/2 in TSR113 $990.00 NF210,
IS 300 (JCE10L) 00-05 10.0 / 8.0 +1/4 ~ -2 1/4 in / +3/4 ~ -2 1/4 in TSR038 $1,090.00 Strut Tower Bar Rear,
IS 350 06-13 7.0 / 7.0 +1/2 ~ -1 3/4 in / ±0 ~ -2 1/2 in TSR113 $990.00 NF210,
Mazda
RX-8 (SE3P) 03-11 8.0 / 6.0 +1/4 ~ -2 1/4 in / +1/4 ~ -2 1/4 in TSR097 $990.00
Mitsubishi
Lancer EVO8 (CT9A) 03-05 8.0 / 6.0 -1/4 ~ -2 1/4 in / -1/4 ~ -2 in TSR072 $1,190.00
Lancer EVO9 (CT9A) 06-06 8.0 / 6.0 -1/4 ~ -2 1/4 in / -1/4 ~ -2 in TSR072 $1,190.00
Nissan
350Z (Z33) 03-08 10.0 / 8.0 +1/4 ~ -1 3/4 in / ±0 ~ -1 1/2 in TSR063 $1,190.00 Strut Tower Bar Front,
370Z (Z34) 09-15 10.0 / 9.0 +1/4 ~ -1 3/4 / ±0 ~ -1 1/2 in TSR150 $1,190.00
Cube (Z12) 10-14 5.0 / 4.0 -1 3/8 ~ -2 1/4 in / -1 7/8 ~ -2 7/8 in TSR123 $1,190.00 NF210, Strut Tower Bar Front,
Versa 5 Door 07-11 5.0 / 4.0 -1 ~ -2 3/4 in / -1 5/8 ~ -2 3/4 in TSR123 $1,190.00 NF210,
Scion
tC 11-15 3.4 / 6.0 -1/2 ~ -1 3/4 in / -1 1/4 ~ -2 1/2 in TSR160 $1,190.00 Strut Tower Bar Front,
xA 04-06 5.0 / 3.0 -1/4 ~ -2 1/2 in / +1/4 ~ -1 1/2 in TSR080 $1,090.00
xB 04-07 5.0 / 3.0 -1/4 ~ -2 1/2 in / +1/4 ~ -1 1/2 in TSR081 $1,090.00
xB 08-14 5.0 / 4.0 -1/4 ~ -2 1/2 in / -1/2 ~ -2 3/4 in TSR129 $1,190.00
Toyota
Prius 10-15 3.0 / 4.0 -3/4 ~ -2 in / -1 ~ -2 1/2 in TSR153 $1,090.00 DF210, NF210, Strut Tower Bar Front,
Prius C 12-13 4.0 / 3.0 +1/4 ~ -1 5/8 in / -3/8 ~ -1 5/8 in TSR168 $1,090.00 DF210, NF210, Strut Tower Bar Front,
Prius Plug-In 14-14 3.0 / 4.0 -1 1/4 ~ -2 in / -1 3/4 ~ 2 3/4 in TSR178 $1,090.00 Strut Tower Bar Front,
Prius V 12-13 3.0 / 4.0 -1 ~ -2 1/4 in / -1 1/4 ~ -2 3/4 in TSR167 $1,090.00 NF210,
Yaris 12-14 4.0 / 3.0 +1/4 ~ -2 in / -1/2 ~ -2 in TSR168 $1,090.00
Yaris 5-door Hatchback 09-14 4.0 / 3.0 +1/4 ~ -1 3/4 in / -1 1/4 ~ -2 3/4 in TSR121 $1,090.00 DF210,

*Lowering data may differ slightly with each application
