SUSTEC DF210. SUPER LOW DOWN FORM

THE PERFECT DROP. AN IDEAL BALANCE

The DF210 coil spring offers a large drop, while retaining superb ride quality characteristics. The spring rate is raised 10-15% to compensate for the shortened amount of suspension travel, without over-stiffening the spring rate and affecting ride quality and shock lifespan.

The DF210 is unique in that it provides an excellent range of benefits, from it's extremely low stance, to performance and comfort. Overall, the DF210 is extremely well balanced for those looking to lower their car, increase handling potential, and maintain comfort.

For those who want the lowest drop.

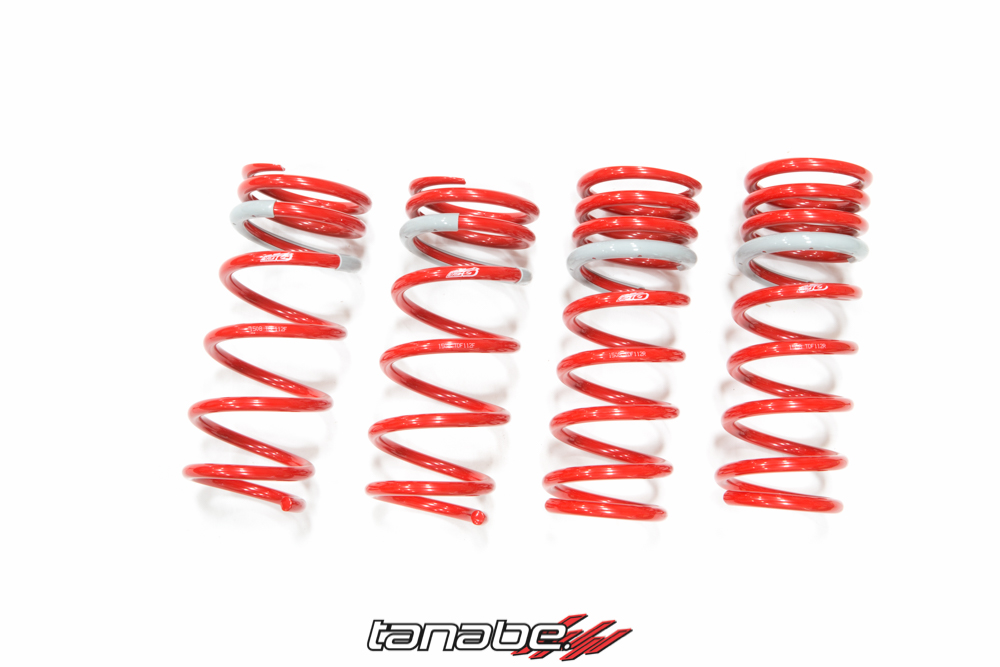

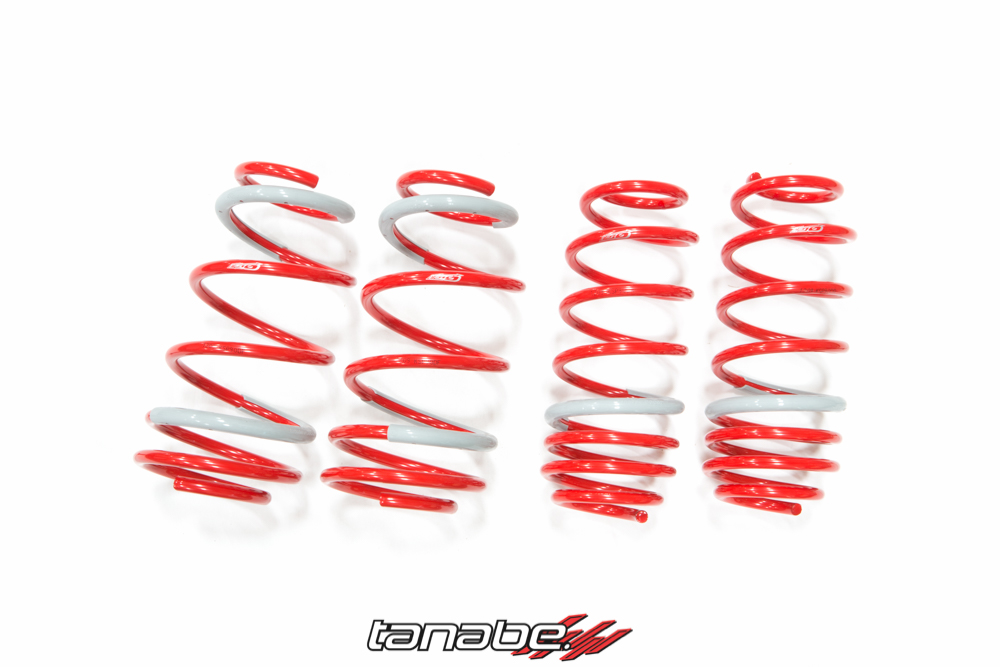

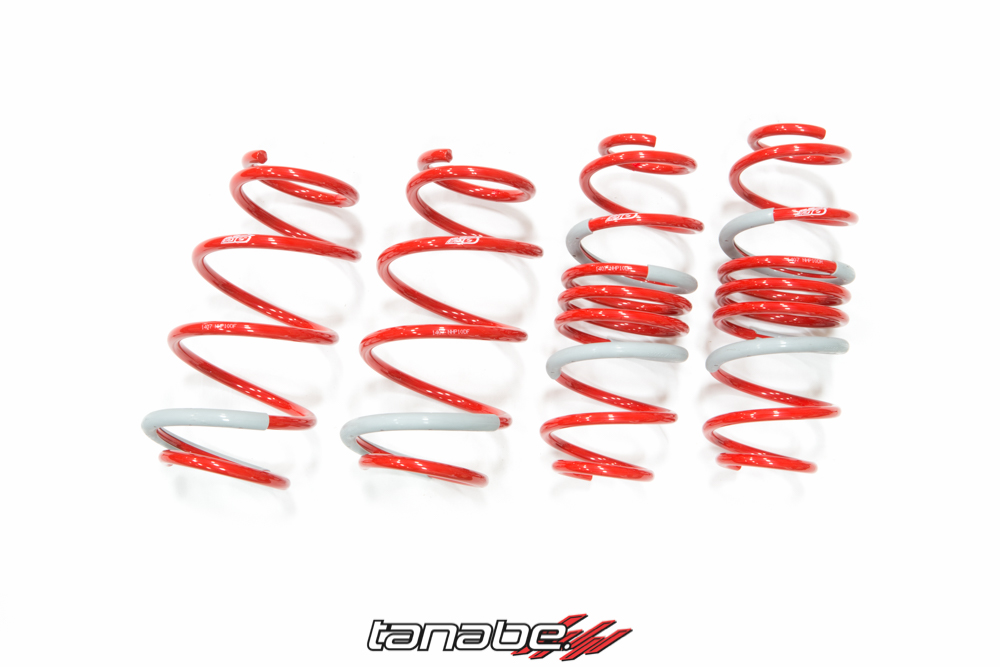

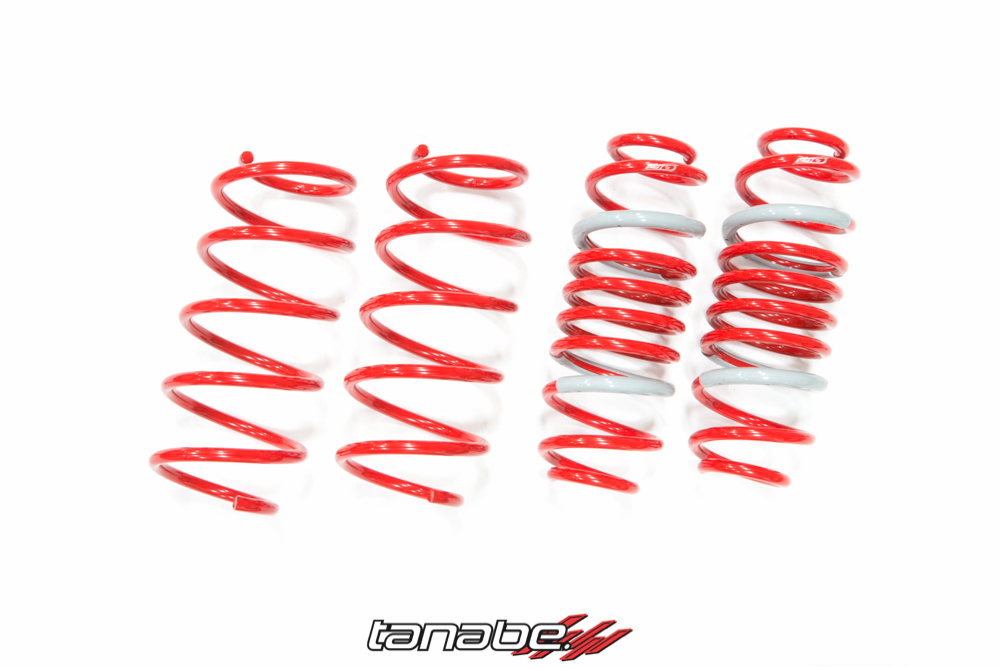

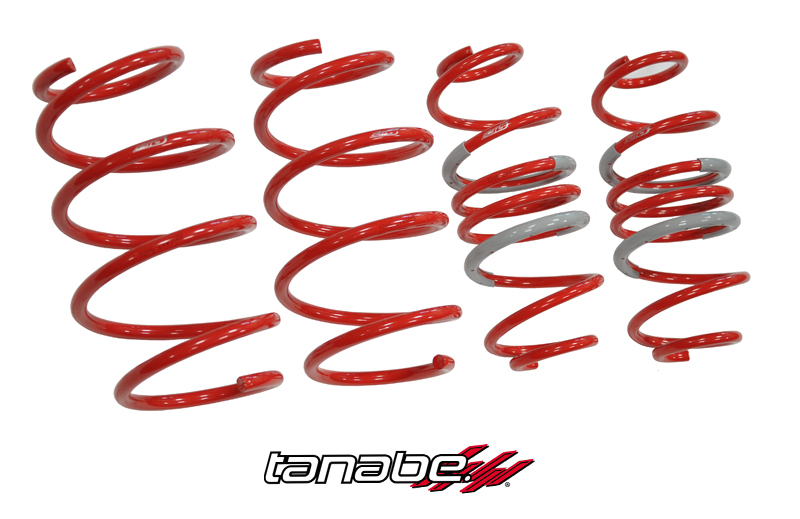

Sustec 210 Technology: DF210 Lowdown Spring

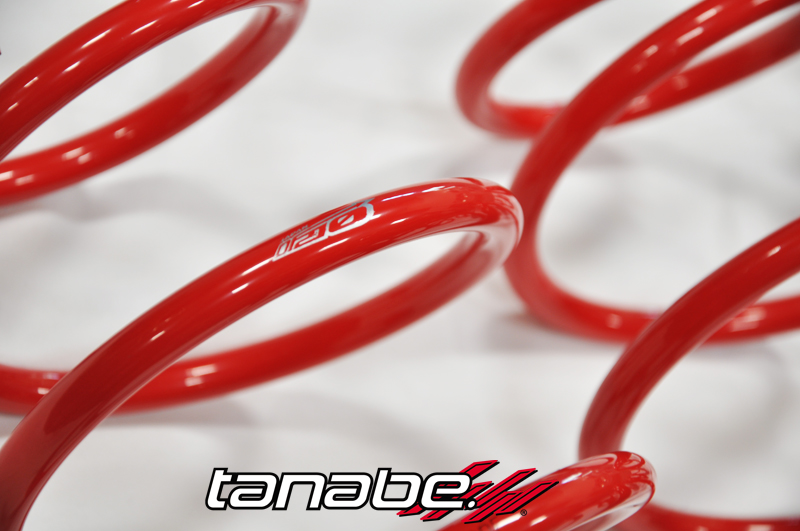

All of our coil springs feature SUSTEC 210 Technology. Sustec 210 Technology is a series of manufacturing methods developed to create a stronger, thinner, and lighter spring using only high tensile steel, without adding additional elements that could affect quality, durability, or price.

"210" stands for 2100n/m of tensile strength, which is the highest strength ever acheived in a coil spring. The Tanabe Shiga factory in Japan is home to some of the most advanced, unique coil spring machines and processes in the world!
Tanabe Springs are known by various race teams in Japan for their impressive performance on the circuit.

In the JGTC GT500 class, our springs were used in the Takata Dome Racing Honda NSX. 		Tanabe Springs are some of the strongest springs available for automotive use (2100n/m) and are created using some of the most advanced methods and machinery in the world. We are one of the only manufacturers who have obtained the world quality manufacturing certification ISO9001.
DF210 Application Chart
(all spring rates are measured in kg/mm)
= new product
= note

ModelsYearSpring Rates
F/R		Down Data
F/R*		Part #MSRPImages / VideoAlso Compatible
Acura
Integra RS/LS/GS/GSR 90-93 5.5 / 2.5 2.0 / 1.8TDF029 $245.00 NF210, GF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Rear,
Integra RS/LS/GS/GSR 94-01 4.1 / 3.0 2.0 / 1.8TDF002 $295.00 NF210, GF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Rear,
Integra Type R 97-01 4.3 / 3.6 2.0 / 1.8TDF041 $295.00 NF210, GF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Rear,
RSX Non Type S (DC5) 02-04 3.7 / 7.5 1.5 / 1.5TDF046 $295.00 NF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
RSX Type S (DC5) 02-04 3.7 / 7.5 1.5 / 1.5TDF046 $295.00 NF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
TL 04-08 5.8 / 2.4 1.6 / 1.4TDF141 $320.00 NF210, Medalion Touring,
TSX (LA-CL9) 04-08 6.5 / 3.0 1.8 / 1.7TDF075 $295.00 NF210, Sustec Pro S-0C, Medalion Touring,
Eagle
Talon 95-99 5.3 / 2.8 1.7 / 1.5TDF005 $260.00 GF210,
Honda
Accord 94-97 5.2 / 2.8 2.0 / 2.0TDF009 $295.00 NF210, GF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Accord 4Cyl 98-02 4.6 / 2.6 2.0 / 1.5TDF023 $315.00 NF210, GF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Accord 4Cyl 03-07 6.5 / 3.0 2.0 / 1.7TDF075 $295.00 NF210, GF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Accord V6 98-02 4.6 / 2.6 2.0 / 1.5TDF023 $315.00 NF210, GF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Accord V6 03-07 6.5 / 3.0 1.8 / 1.7TDF075 $295.00 NF210, GF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Civic (EF) 88-91 5.3 / 2.7 1.6 / 1.6TDF027 $270.00 NF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Civic Coupe/Sedan 92-95 4.5 / 3.0 1.8 / 1.5TDF004 $270.00 NF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Civic Coupe/Sedan 96-00 4.5 / 3.0 1.8 / 1.5TDF004 $270.00 NF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Civic Coupe/Sedan (ES) 01-05 3.0 / 5.0 1.8 / 1.8TDF043 $280.00 NF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Civic Hatchback (EG) 92-95 4.5 / 3.0 1.8 / 1.8TDF004 $270.00 NF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Civic Hatchback (EK) 96-00 4.5 / 3.0 1.8 / 1.8TDF018 $270.00 NF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Civic SI Coupe (FG) 06-11 3.4 / 4.1 0.9 / 1.0TDF115 $390.00 NF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Civic SI Hatchback (EP) 02-05 3.0 / 5.0 2.0 / 2.3TDF043 $280.00 NF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Civic SI Sedan (FA5) 07-11 3.4 / 4.1 1.3 / 1.1TDF115 $390.00 NF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
CRX (EF) 88-91 5.3 / 2.7 1.8 / 1.8TDF027 $270.00 GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Del Sol 92-95 4.5 / 3.0 - / - TDF004 $270.00 Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace,
Fit (GD) 07-08 3.1 / 4.9 1.8 / 1.3TDF122 $295.00 NF210, GF210, Sustec Pro S-0C, CST Coilover, Sustec Z40, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace,

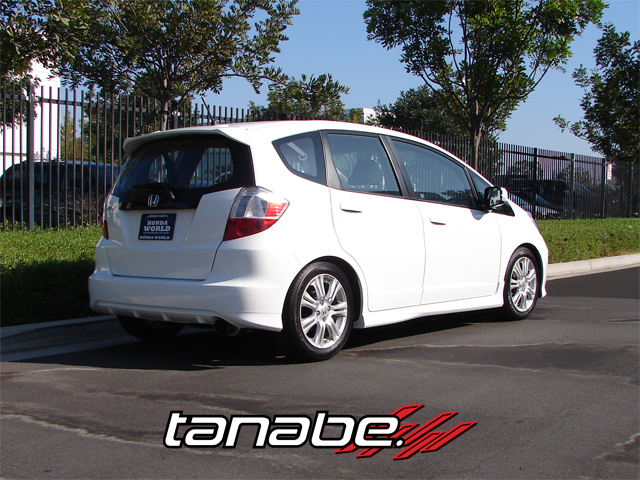

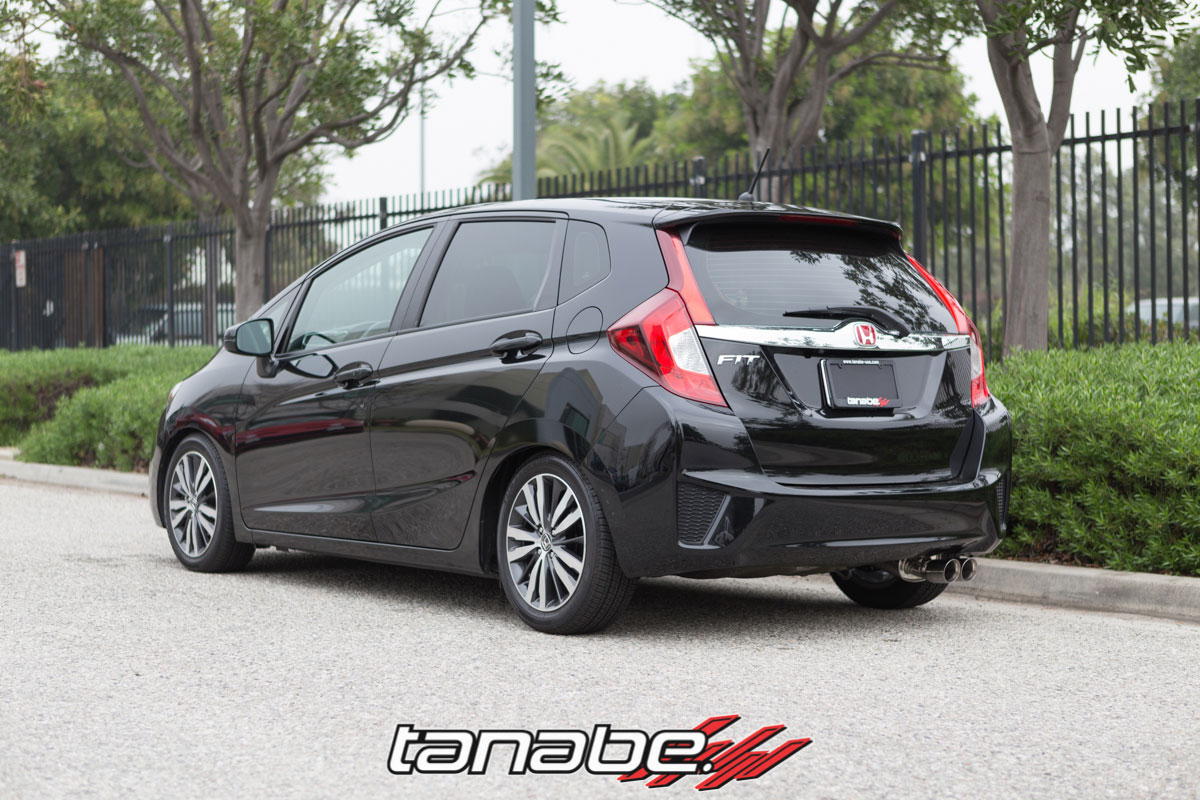

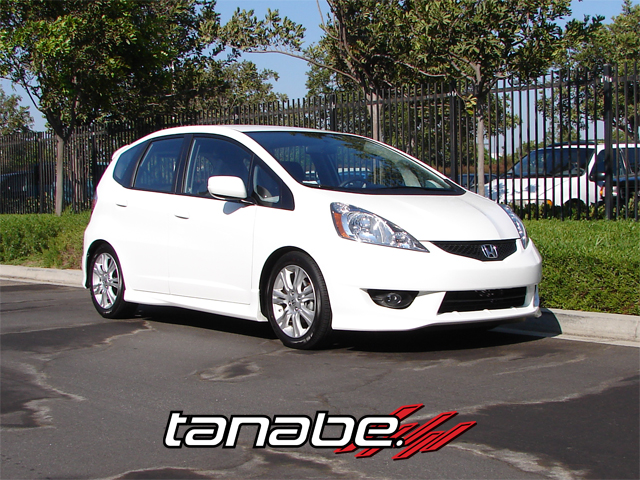

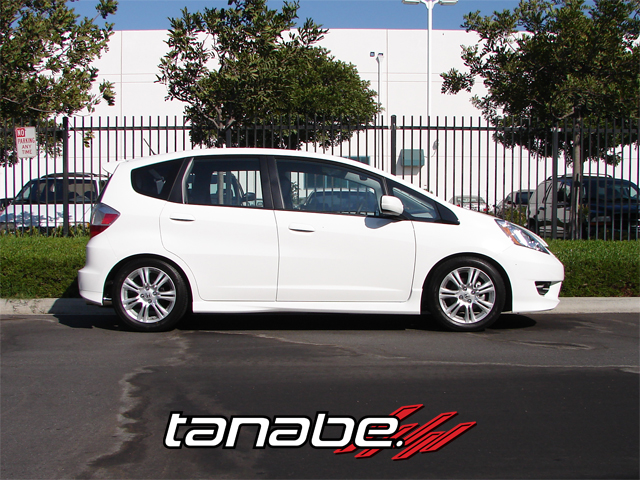

Fit 09-12 1.7 / 2.0 1.3 / 1.8TDF143 $295.00 NF210, GF210, Sustec Pro S-0C, CST Coilover, Sustec Z40, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace,

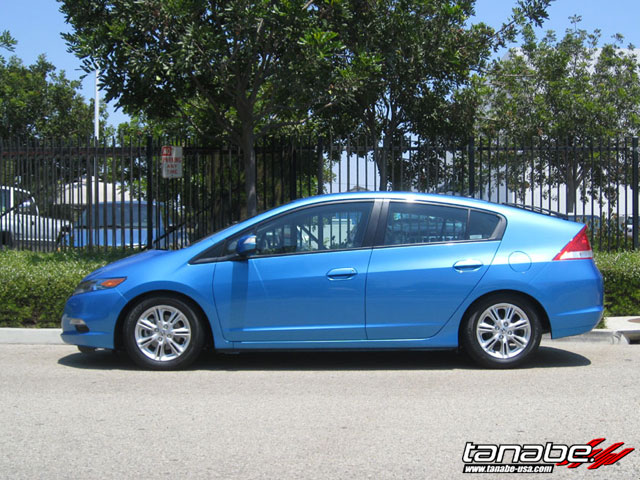

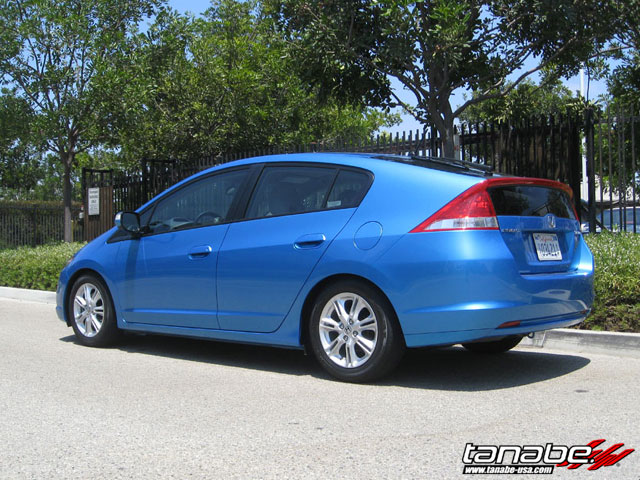

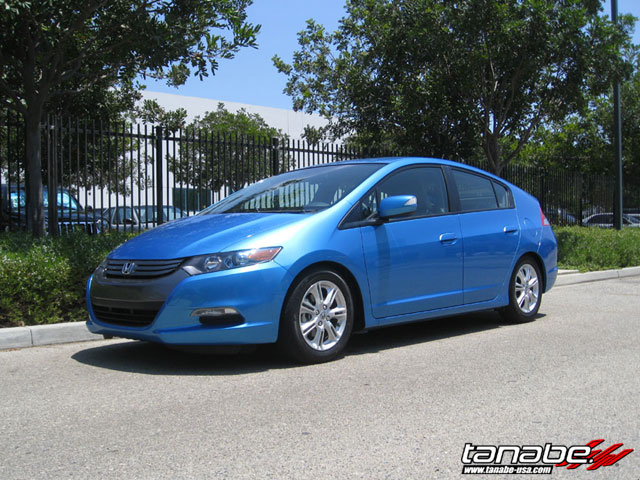

Insight (ZE2) 10-11 2.2 / 3.6 1.5 / 2.0TDF148 $295.00 NF210, Sustec Pro S-0C, CST Coilover, Sustec Z40, Medalion Touring, Concept G, Front Under Brace,
Prelude (BB1/4) 92-96 4.8 / 3.5 1.5 / 1.2TDF008 $280.00 GF210, Sustec Pro S-0C, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Prelude 97-01 3.7 / 3.6 1.5 / 1.2TDF020 $280.00 GF210, Sustec Pro S-0C, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Prelude 97-01 3.7 / 3.6 1.2 / 1.2TDF020 $280.00 GF210, Sustec Pro S-0C, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Infiniti
G35 (V35) 03-07 5.5 / 6.3 1.7 / 1.3TDF073 $280.00 NF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro FIVE, Sustec Z40, Down Pipe, Medalion Touring, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
G35 Sedan (V35) 03-06 5.1 / 5.0 1.7 / 1.5TDF082 $295.00 NF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro FIVE, Sustec Z40, Down Pipe, Medalion Touring, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
G35 Sedan 07-08 7.8 / 7.4 1.4 / 1.4TDF130 $345.00 NF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro FIVE, Sustec Z40, Down Pipe, Medalion Touring, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
G37 Sedan 09-11 7.8 / 7.4 1.4 / 1.4TDF130 $345.00 NF210, Sustec Pro S-0C, Down Pipe, Medalion Touring, Front Under Brace,
Lexus
ES300 (MCV20L) 97-01 2.7 / 2.3 1.8 / 1.0TDF084 $345.00 NF210,
ES300 02-03 2.8 / 2.7 2.0 / 1.3TDF090 $345.00 NF210,
GS300 (JZS147) 93-97 6.2 / 3.8 1.8 / 1.8TDF077 $345.00 NF210, Sustec Pro S-0C, Sustec Pro FIVE, CST Coilover, Sustec Z40, Medalion Touring,
GS300 98-05 6.0 / 5.6 1.8 / 1.3TDF024 $345.00 NF210, Sustec Pro S-0C, Sustec Pro FIVE, CST Coilover, Sustec Z40, Medalion Touring,

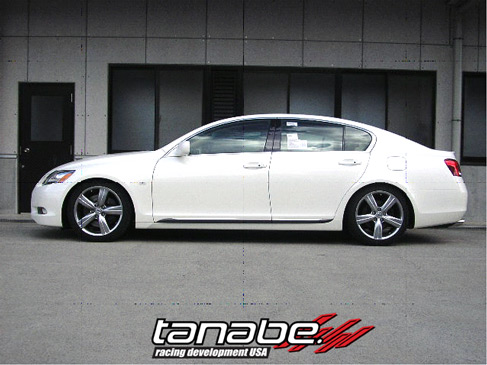

GS300 06-06 4.7 / 6.1 1.9 / 1.6TDF112 $345.00 NF210, Sustec Pro S-0C, Sustec Pro FIVE, CST Coilover, Sustec Z40, Medalion Touring,
GS350 07-11 4.7 / 6.1 1.9 / 1.6TDF112 $345.00 NF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro FIVE, Medalion Touring,
GS400 93-97 6.2 / 3.8 1.8 / 1.8TDF077 $345.00 NF210, CST Coilover, Medalion Touring,
GS400/430 98-05 7.3 / 5.6 2.0 / 1.5TDF24B $345.00 NF210, CST Coilover, Medalion Touring,
GS430 06-07 4.7 / 6.1 2.0 / 1.8TDF112 $345.00 NF210, Sustec Pro S-0C, Sustec Pro FIVE, Sustec Z40, Medalion Touring,
IS250 RWD 06-09 4.6 / 5.3 1.0 / 1.1TDF125 $335.00 NF210, Sustec Pro S-0C, Sustec Pro FIVE, CST Coilover, Sustec Z40, Medalion Touring, Front Under Brace,
IS300 (JCE10L) 00-05 5.2 / 3.8 2.0 / 1.2TDF038 $315.00 NF210, GF210, Sustec Pro S-0C, CST Coilover, Medalion Touring, Concept G, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
LS400 (UCF10) 90-94 6.3 / 3.0 1.8 / 1.3TDF076 $345.00 CST Coilover,
LS400 (UCF20) 95-00 6.3 / 3.0 1.8 / 1.5TDF085 $345.00 CST Coilover,
LS430 01-06 5.3 / 3.8 1.0 / 1.0TDF088 $345.00 NF210, Sustec Pro FIVE, CST Coilover, Sustec Z40,
Mazda
Mazda 2 10- 2.2 / 1.6 1.7 / 1.6TDF159 $295.00 NF210, Sustec Pro S-0C, Front Under Brace,
Protege 5 (BJFW) 01-05 2.8 / 2.5 1.6 / 1.5TDF051 $325.00 NF210, GF210, Medalion Touring,
Mitsubishi
Eclipse (D53A(3.0L)) 00-05 3.0 / 2.6 2.1 / 1.9TDF037 $270.00 GF210, Sustec Pro S-0C, Down Pipe, Concept G, Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Eclipse 06-07 4.2 / 3.1 1.4 / 1.5TDF114 $325.00 GF210, Sustec Pro S-0C, Down Pipe, Concept G, Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Eclipse RS/GS/GST/GSX 95-99 5.3 / 2.8 1.5 / 1.3TDF005 $260.00 GF210, Sustec Pro S-0C, Down Pipe, Concept G, Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Lancer EVO 10 (CZ4A) 08-08 4.5 / 3.3 1.1 / 1.4TDF139 $295.00 NF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro SEVEN HD, CST Coilover, Sustec Z40, Down Pipe, Medalion Touring, Concept G, Concept G Blue Full Turboback, Concept G Blue (Catback Only), Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Nissan
240SX (S14) 95-98 2.7 / 2.7 - / - TDF011 $295.00 GF210, CST Coilover, Down Pipe, Concept G, Concept G Blue Full Turboback, Concept G Blue (Catback Only), Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Maxima (A32) 95-99 2.8 / 3.7 1.6 / 2.2TDF120 $325.00
Sentra (B15) 00-06 3.1 / 4.6 1.8 / 1.8TDF055 $295.00 NF210, GF210, Medalion Touring, Concept G, Front Under Brace,
Sentra 07-12 3.4 / 4.1 1.5 / 1.6TDF134 $295.00 NF210, GF210, Medalion Touring, Concept G, Front Under Brace,
Sentra SE-R 02-05 3.1 / 4.6 1.8 / 1.8TDF055 $295.00 NF210, GF210, Medalion Touring, Concept G, Front Under Brace,
Scion
tC 05-10 3.4 / 4.3 1.7 / 2.2TDF106 $295.00 NF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace,
tC 11-12 2.6 / 4.5 1.0 / 1.5TDF160 $295.00 NF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace,
xA 04-07 2.5 / 3.1 2.0 / 1.8TDF080 $295.00 NF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Rear Under Brace,
xB 04-07 2.8 / 3.0 2.2 / 2.0TDF081 $295.00 NF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace,
xB 08-12 2.4 / 2.7 1.7 / 2.1TDF129 $295.00 NF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace,
xD 08-12 3.0 / 2.2 1.9 / 2.2TDF121 $295.00 Medalion Touring, Strut Tower Bar Front, Front Under Brace,
Subaru
Impreza (GC6/8) 98-01 3.5 / 2.5 1.0 / 1.1TDF031 $325.00 NF210, GF210, CST Coilover, Down Pipe, Medalion Touring, Concept G, Concept G Blue Full Turboback, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Impreza WRX 02-03 3.5 / 2.6 2.0 / 1.5TDF045 $325.00 NF210, GF210, CST Coilover, Down Pipe, Medalion Touring, Concept G, Concept G Blue Full Turboback, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Impreza WRX 05-07 4.7 / 4.4 1.3 / 0.8TDF107 $335.00 NF210, GF210, CST Coilover, Down Pipe, Medalion Touring, Concept G, Concept G Blue Full Turboback, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Impreza WRX Hatchback (GV7) 11-12 4.4 / 3.1 0.9 / 0.9TDF140 $340.00 NF210, GF210, Sustec Pro S-0C, Medalion Touring, Concept G, Concept G Blue Full Turboback, Strut Tower Bar Front, Front Under Brace,
Impreza WRX STI 05-07 4.7 / 4.4 1.3 / 0.8TDF107 $335.00 NF210, GF210, CST Coilover, Down Pipe, Medalion Touring, Concept G, Concept G Blue Full Turboback, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Impreza WRX STI Hatchback (GRB) 08-12 4.4 / 3.1 1.1 / 1.1TDF140 $340.00 NF210, GF210, Sustec Pro FIVE, CST Coilover, Sustec Z40, Down Pipe, Medalion Touring, Concept G, Concept G Blue Full Turboback, Strut Tower Bar Front, Front Under Brace,
WRX STI (GVB) 11- 4.4 / 3.1 1.0 / 0.7TDF140 $340.00 NF210, GF210, Sustec Pro S-0C, Sustec Pro FIVE, Strut Tower Bar Front, Front Under Brace,
Toyota
Celica (ST202) 94-99 3.1 / 2.8 2.2 / 1.5TDF083 $260.00 NF210, GF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Celica (ZZT231) 00-05 2.6 / 4.2 2.2 / 2.5TDF036 $260.00 NF210, GF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Prius 10-11 2.3 / 3.0 1.3 / 1.6TDF153 $315.00 NF210, Sustec Pro S-0C, CST Coilover, Sustec Z40, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front,

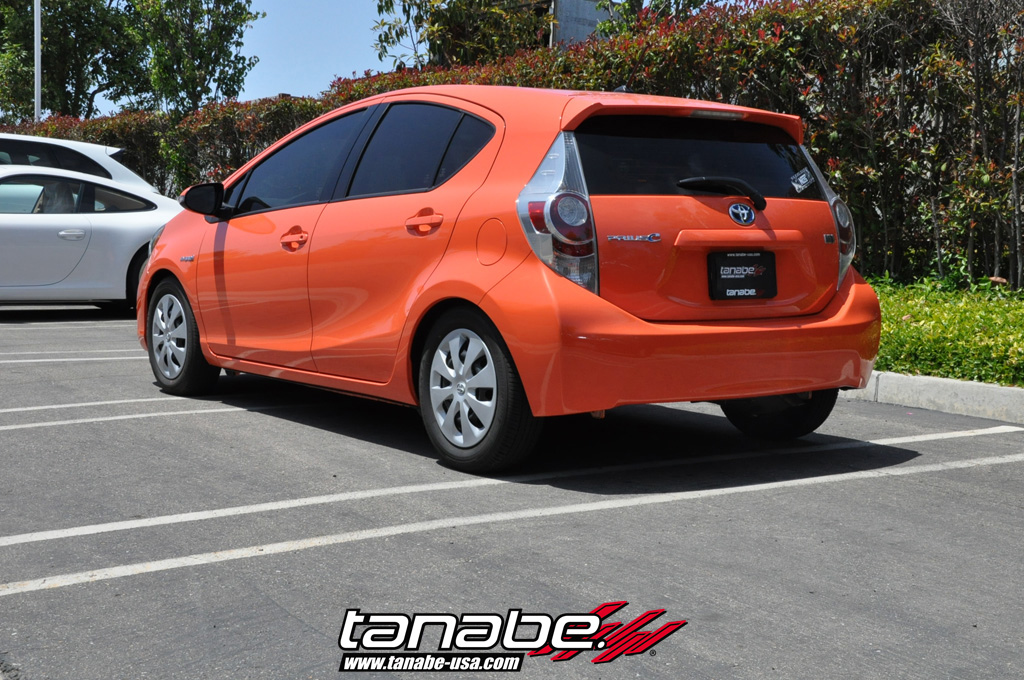

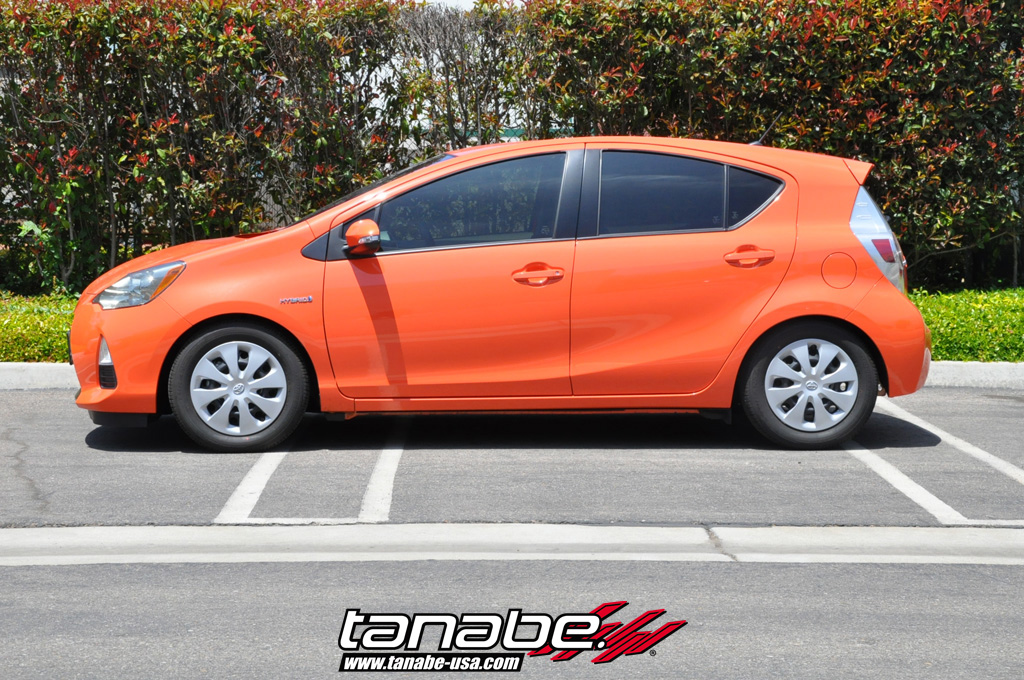

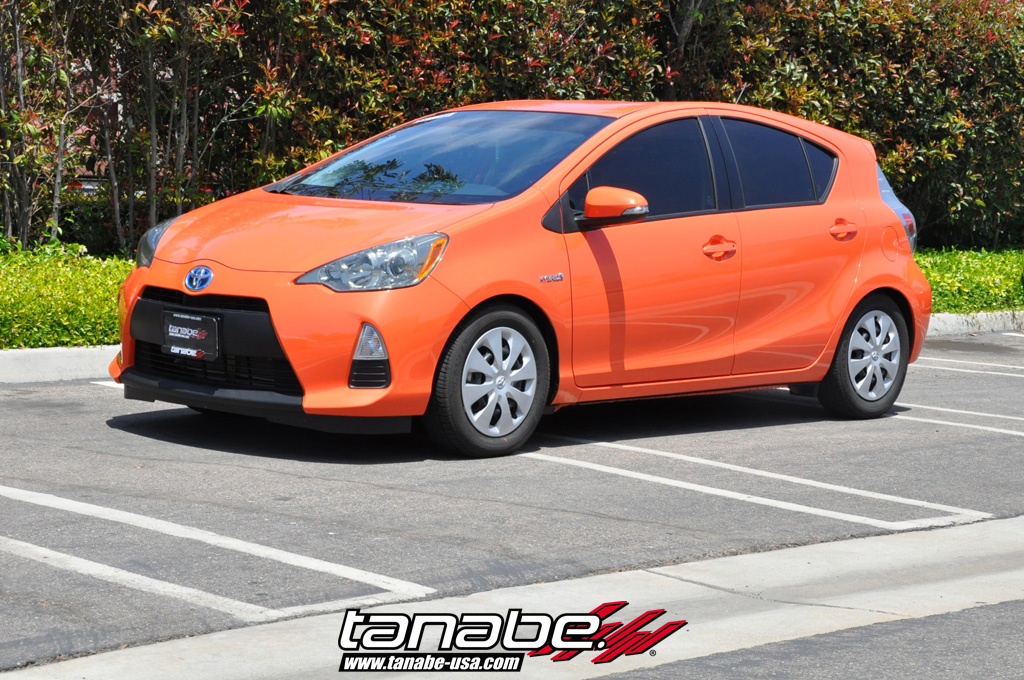

Prius C 12- 2.5 / 2.2 1.1 / 1.5TDF168 $315.00 NF210, Sustec Pro S-0C, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front,
Vitz RS (NCP13) 01-05 2.5 / 2.5 1.5 / 0.8TDF099 $260.00 NF210, Strut Tower Bar Front, Front Under Brace, Rear Under Brace,

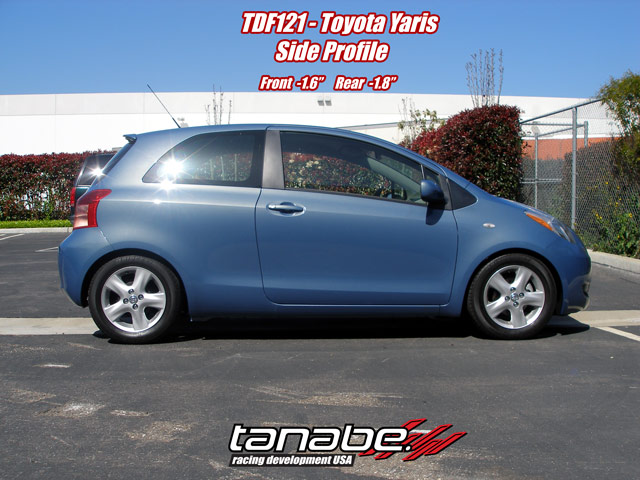

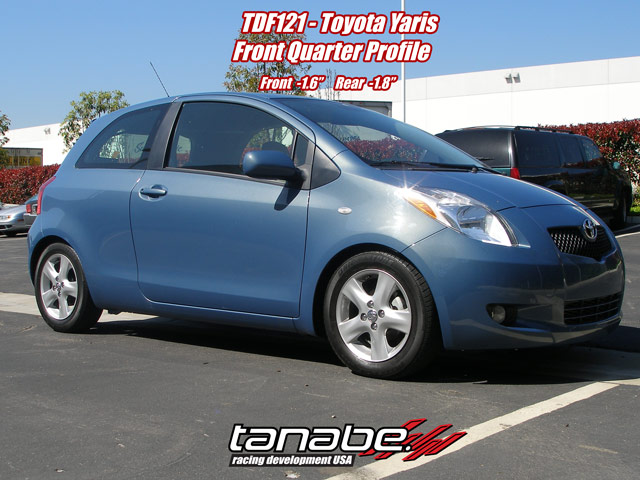

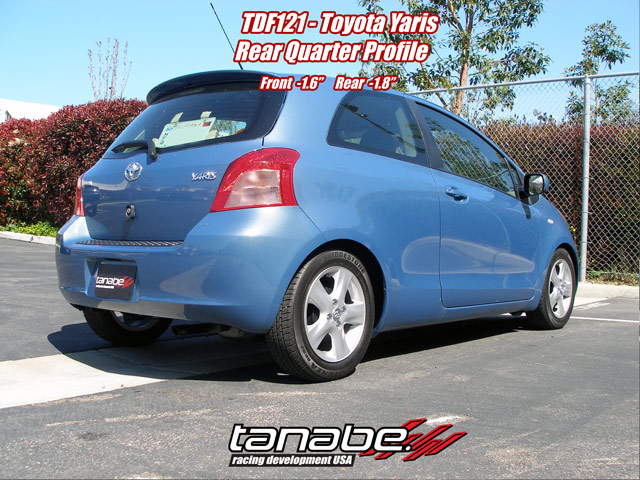

Yaris 07-11 3.0 / 2.2 1.6 / 2.1TDF121 $295.00 NF210, Sustec Pro S-0C, Sustec Z40, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front,
Yaris 5-Door 09-10 3.0 / 2.2 1.6 / 2.1TDF121 $295.00 NF210, Sustec Pro S-0C, Sustec Z40, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front,
Yaris Sedan 07-11 3.0 / 2.2 2.0 / 2.1TDF121 $295.00

*Lowering data may differ slightly with each application
