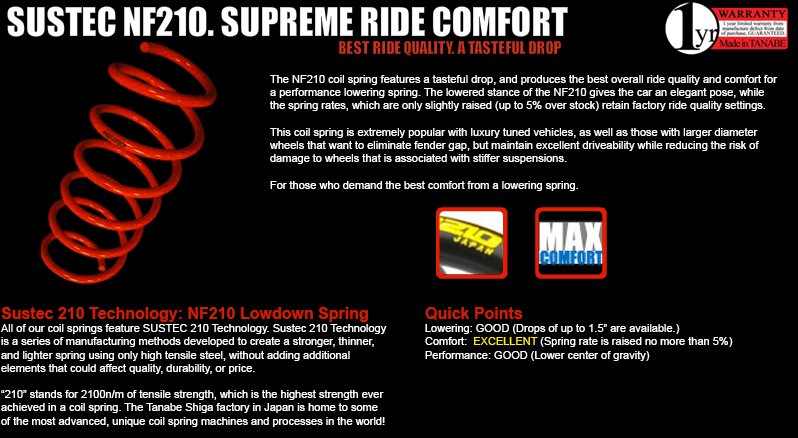

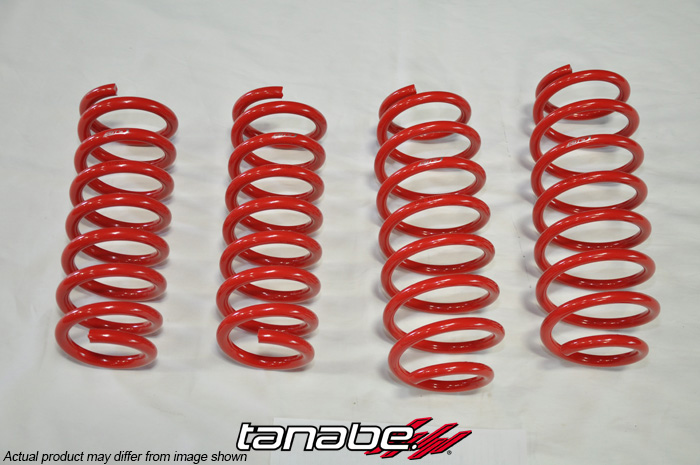

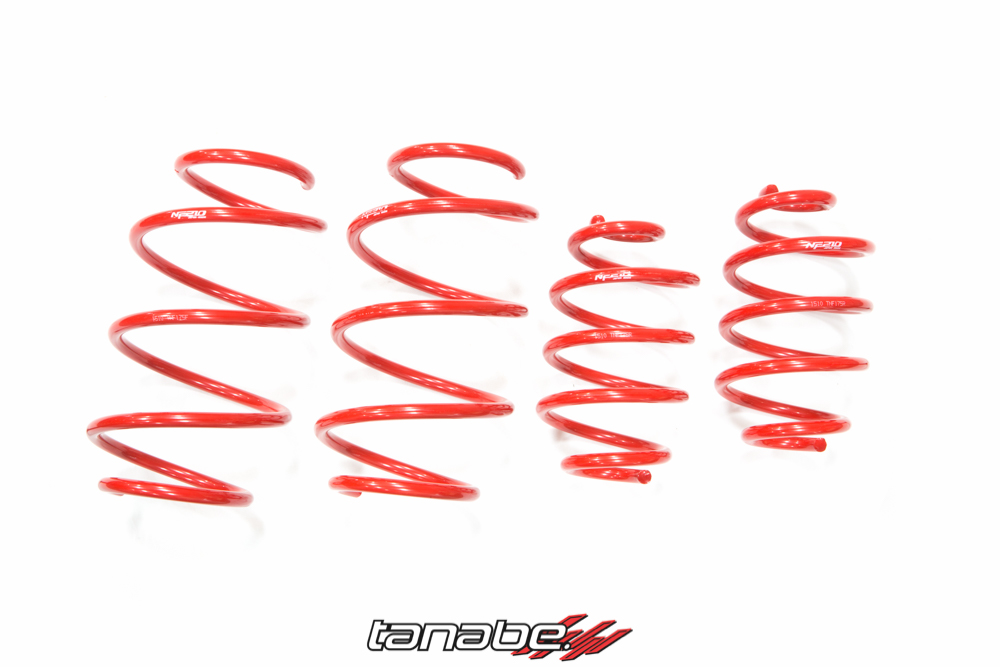

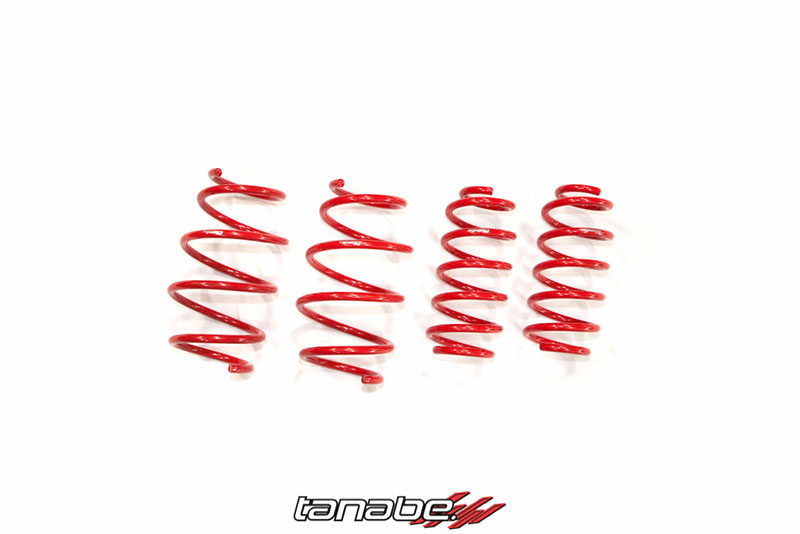

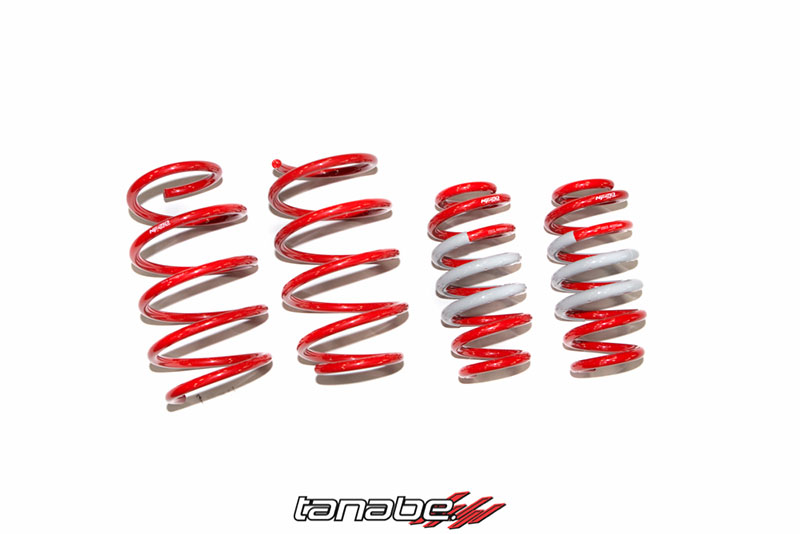

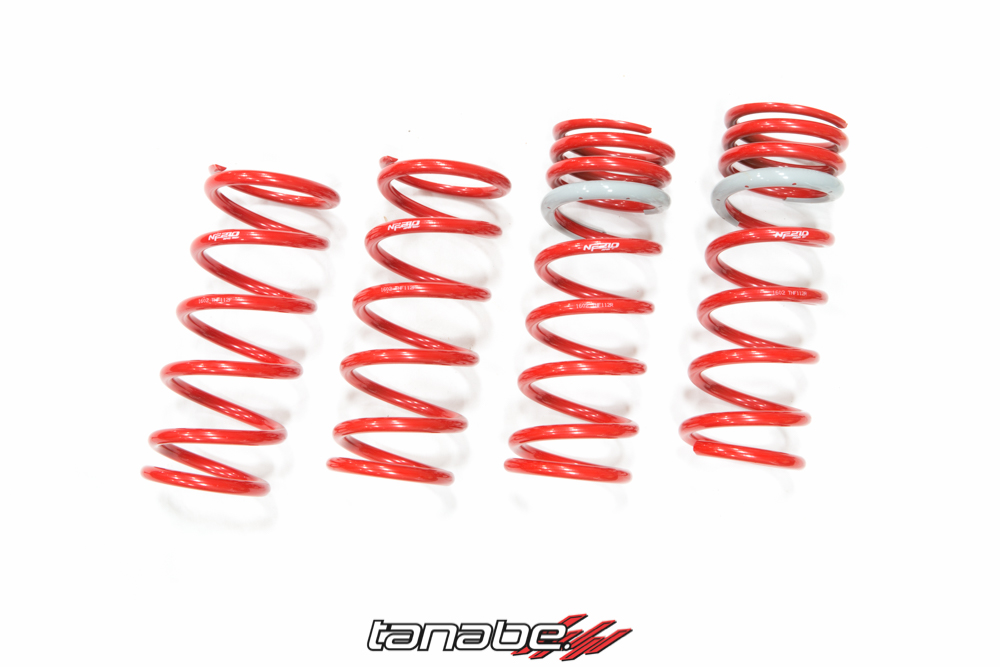

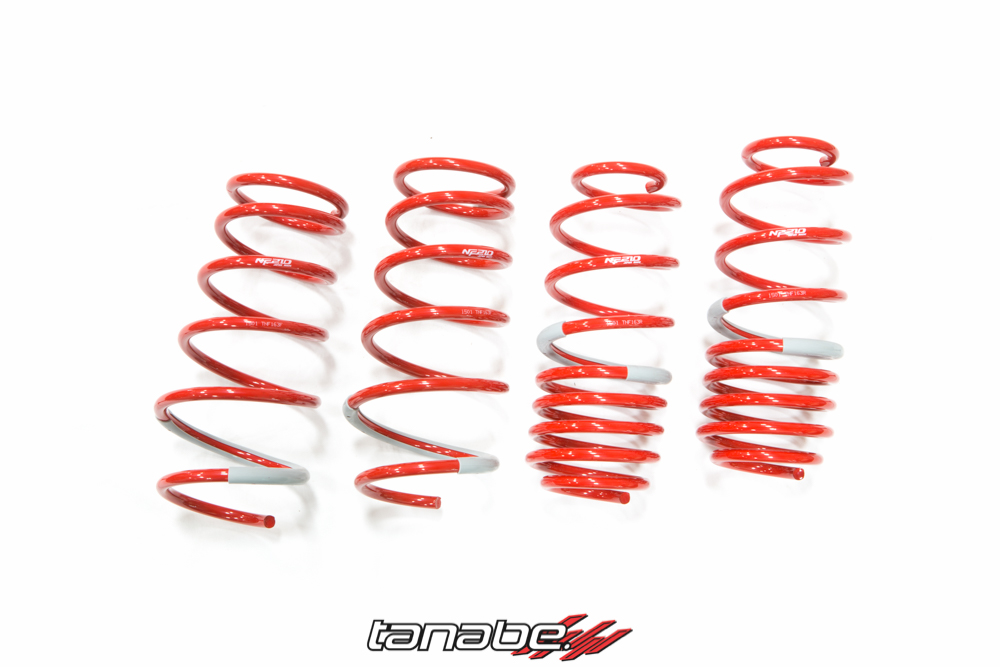

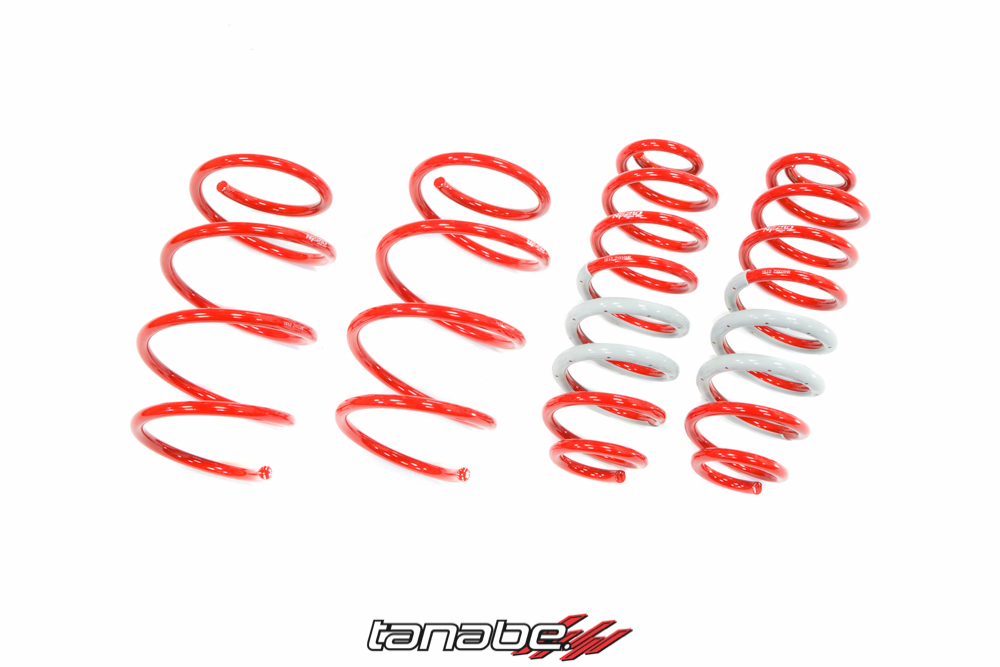

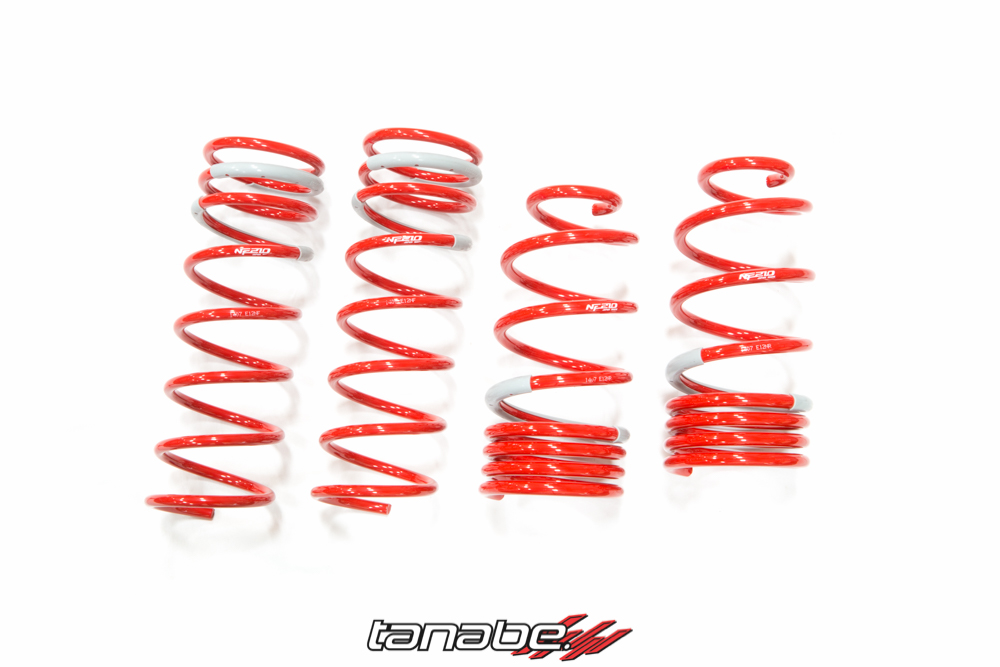

SUSTEC NF210. SUPREME RIDE COMFORT

BEST RIDE QUALITY. A TASTEFUL DROP

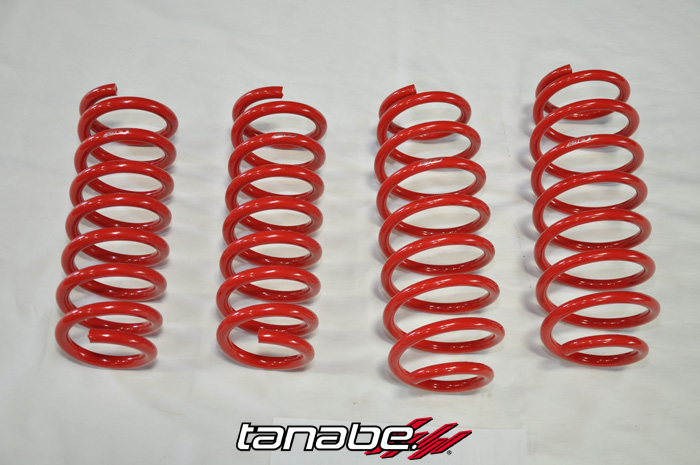

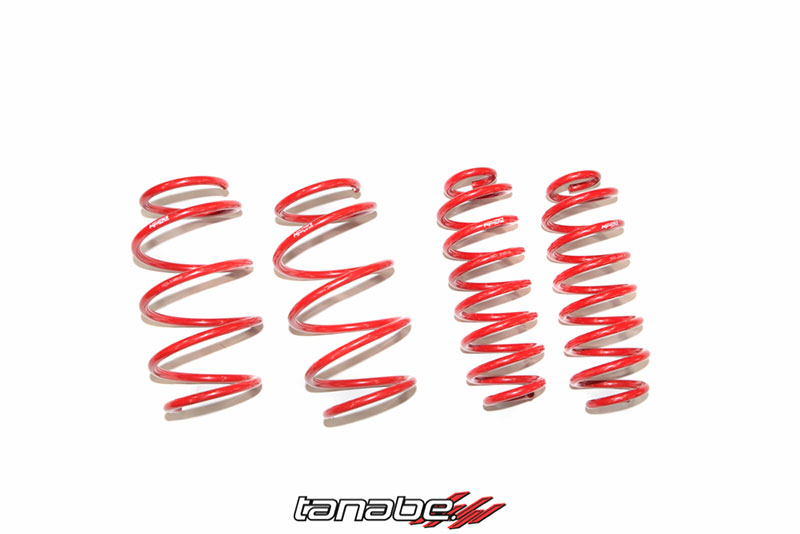

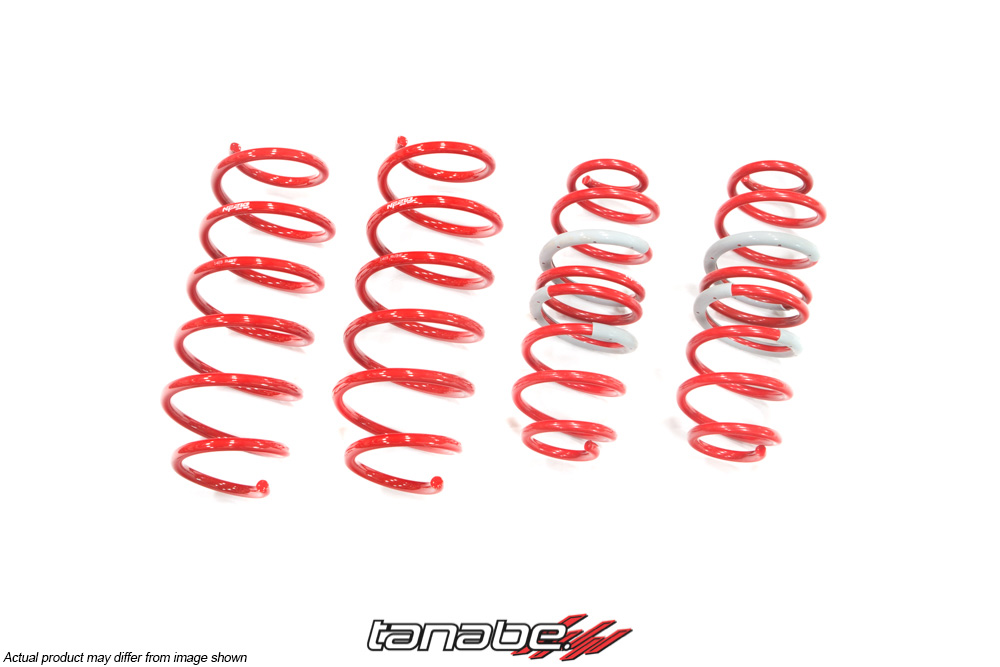

The NF210 coil spring features a tasteful drop, and produces the best overall ride quality and comfort for a performance lowering spring. The lowered stance of the NF210 gives the car an elegant pose, while the spring rates, which are only slightly raised (up to 5% over stock) retain factory ride quality settings.

This coil spring is extremely popular with luxury tuned vehicles, as well as those with larger diameter wheels that want to eliminate fender gap, but maintain excellent driveability while reducing the risk of damage to wheels that is associated with stiffer suspensions.

For those who demand the best comfort from a lowering spring

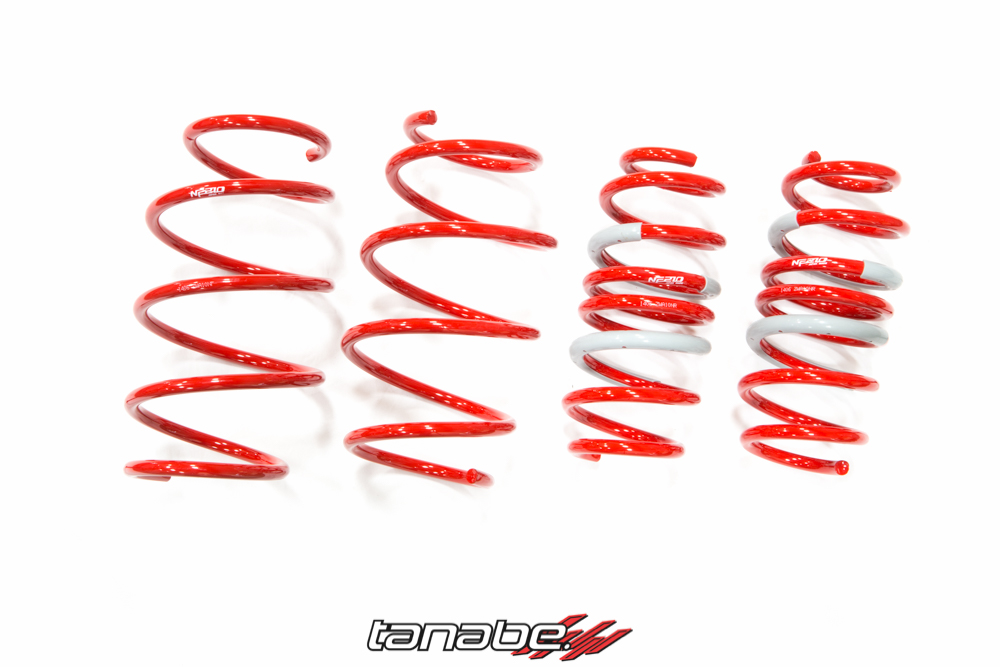

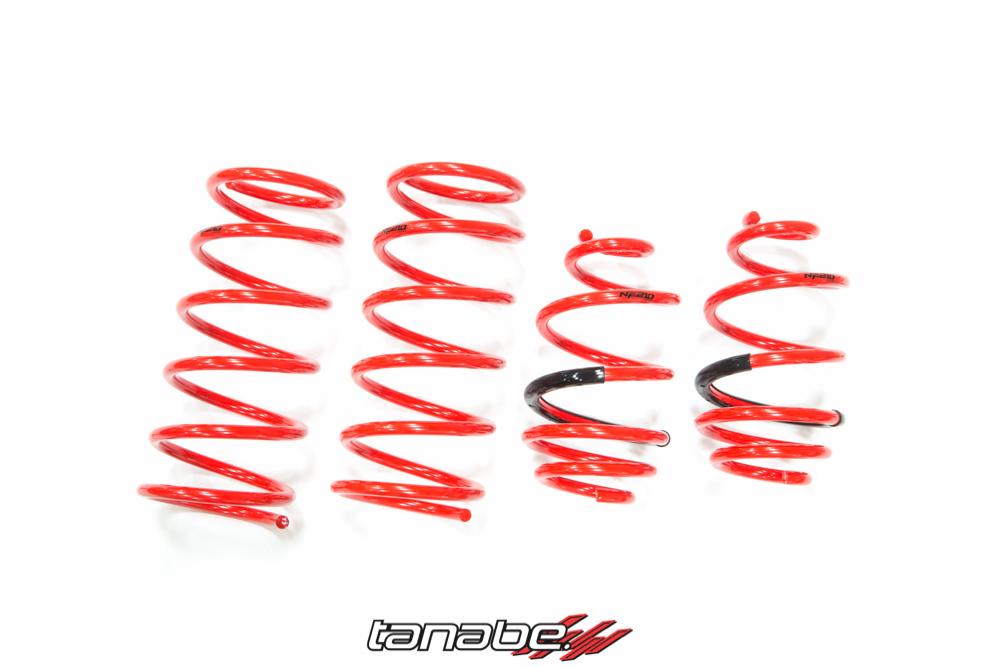

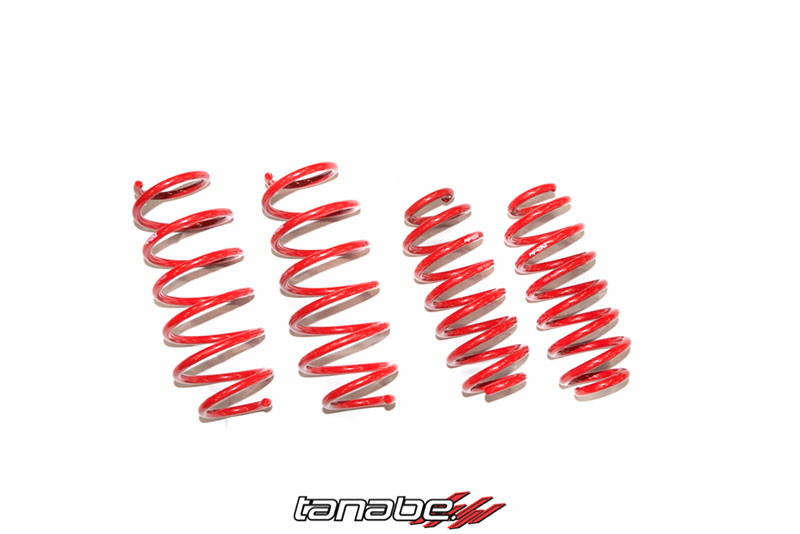

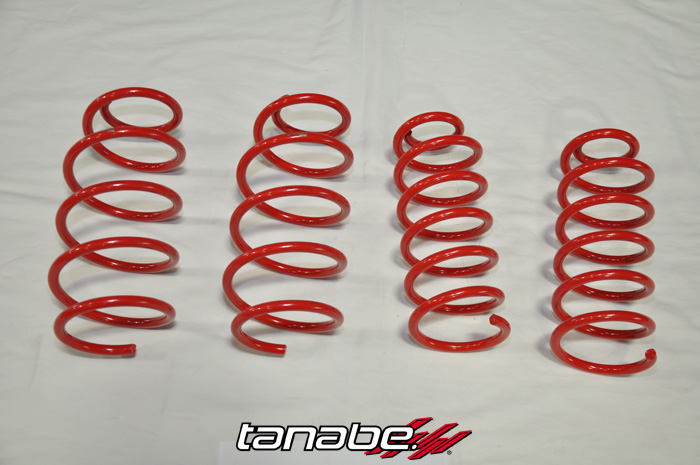

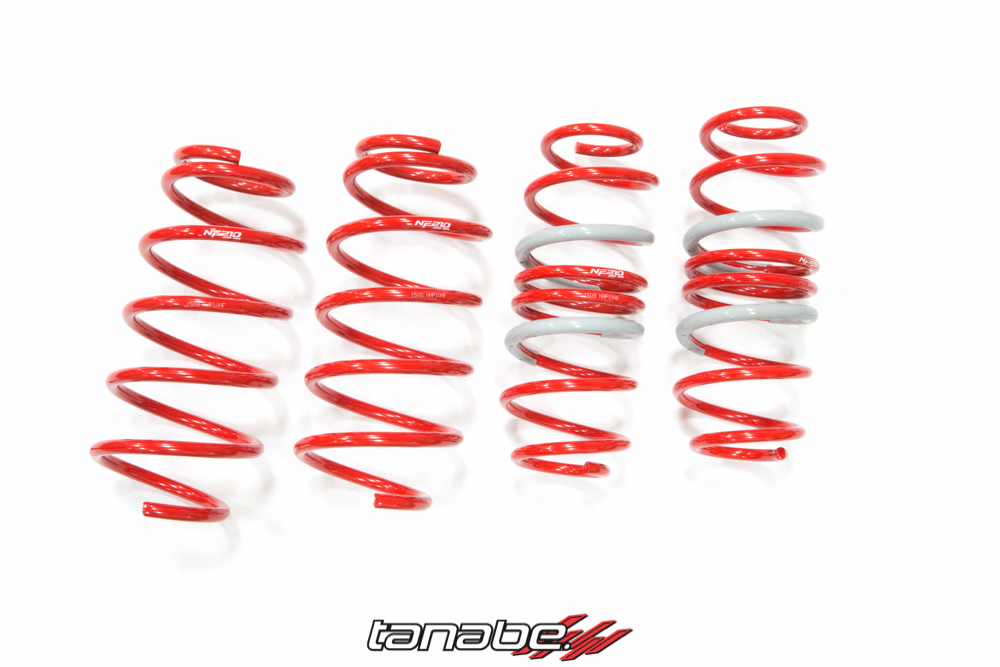

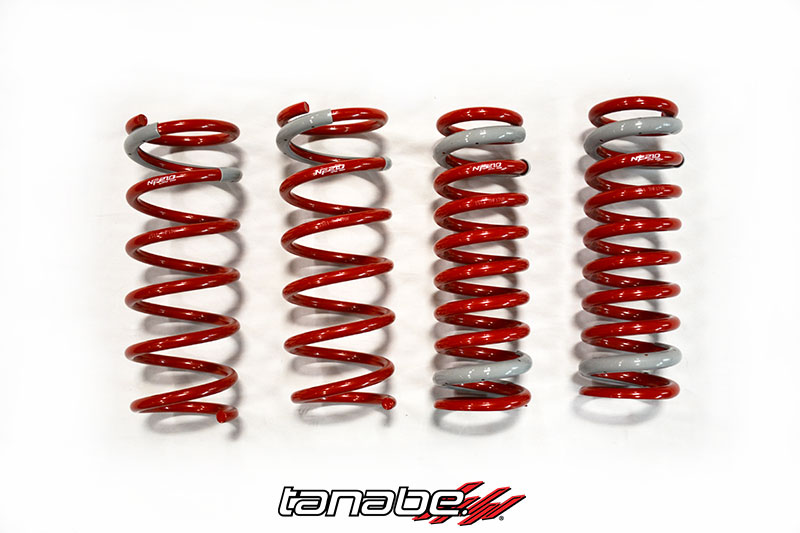

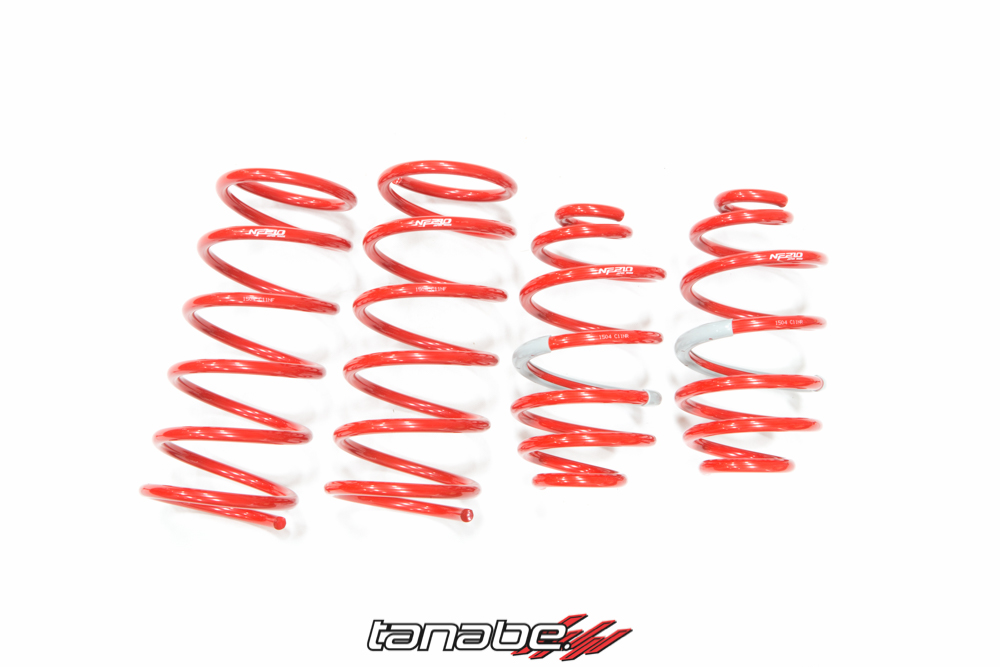

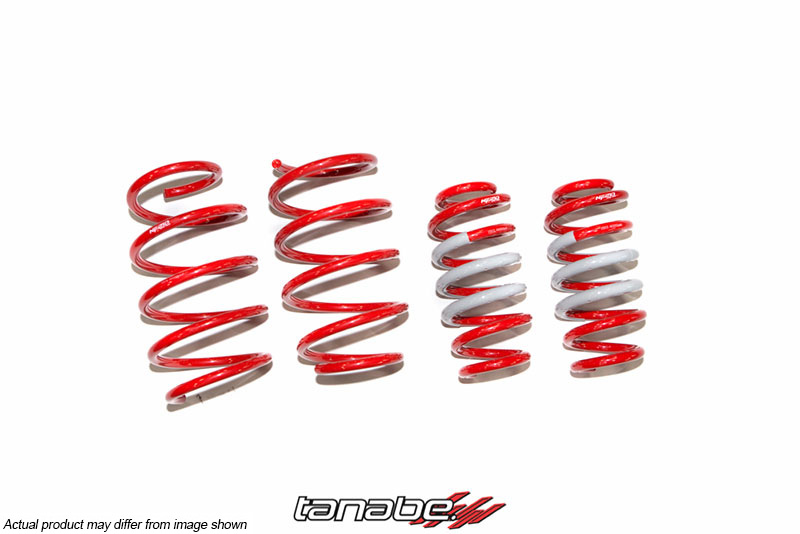

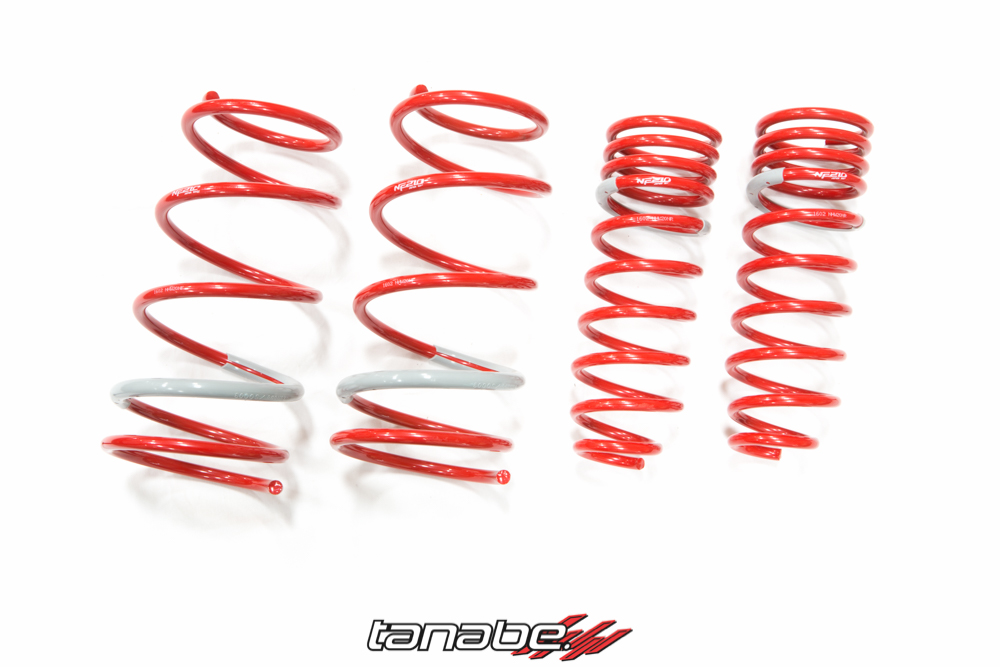

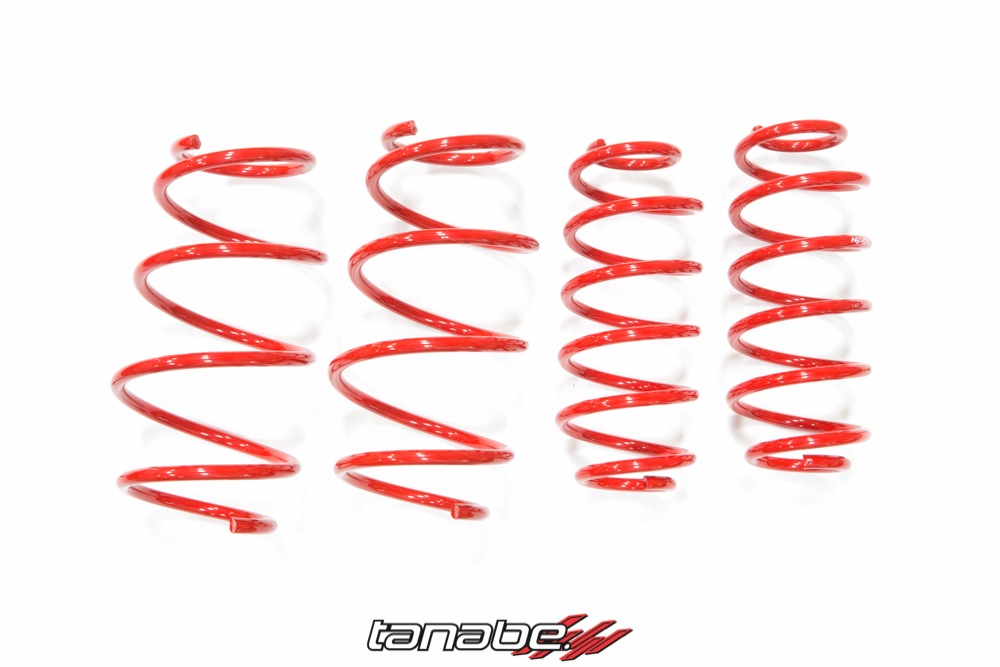

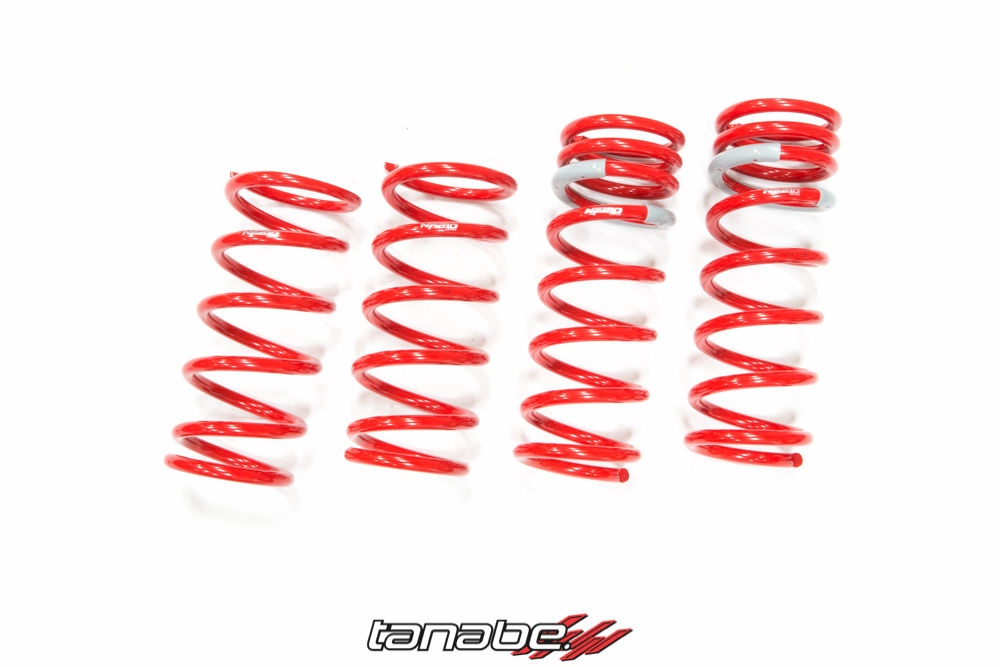

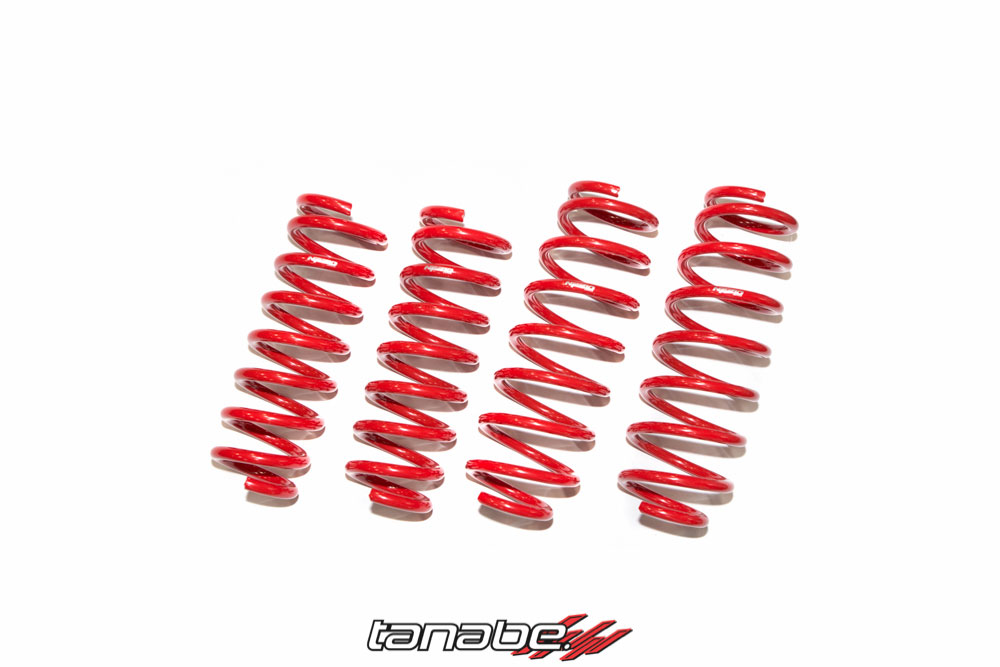

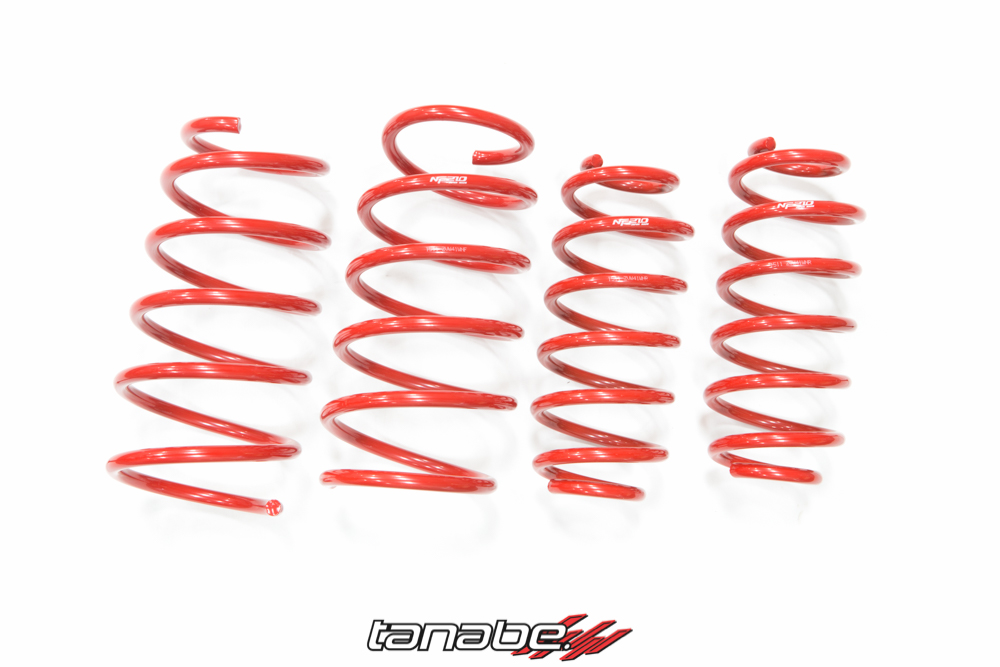

Sustec 210 Technology: NF210 Lowering Spring

All of our coil springs feature SUSTEC 210 Technology. Sustec 210 Technology is a series of manufacturing methods developed to create a stronger, thinner, and lighter spring using only high tensile steel, without adding additional elements that could affect quality, durability, or price.

"210" stands for 2100n/m of tensile strength, which is the highest strength ever acheived in a coil spring. The Tanabe Shiga factory in Japan is home to some of the most advanced, unique coil spring machines and processes in the world!

Tanabe Springs are known by various race teams in Japan for their impressive performance on the circuit.

In the JGTC GT500 class, our springs were used in the Takata Dome Racing Honda NSX. 		Tanabe Springs are some of the strongest springs available for automotive use (2100n/m) and are created using some of the most advanced methods and machinery in the world. We are one of the only manufacturers who have obtained the world quality manufacturing certification ISO9001.
NF210 Application Chart
(all spring rates are measured in kg/mm)
= new product
= note

ModelsYearSpring Rates
F/R		Down Data
F/R*		Part #MSRPImages / VideoAlso Compatible
Acura
CL 97-99 4.9 / 2.3 1.8 / 1.5TNF009 $295.00 Medalion Touring,
CL 01-03 5.0 / 2.5 1.0 / 0.5TNF074 $325.00 Medalion Touring,
Integra Type R 97-01 4.9 / 3.6 1.0 / 1.0TNF041 $270.00 DF210, GF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Rear,
RSX Non Type S (DC5) 02-04 3.8 / 6.4 1.2 / 1.5TNF047 $295.00 DF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
RSX Type S (DC5) 02-04 3.8 / 7.6 1.2 / 1.2TNF046 $295.00 DF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
TL 99-01 5.0 / 2.5 1.3 / 0.5TNF074 $325.00 DF210, Medalion Touring,
TL 02-03 5.0 / 2.5 1.5 / 1.5TNF074 $325.00 DF210, Medalion Touring,
TL 04-08 5.8 / 2.6 0.9 / 1.0TNF141 $310.00 DF210, Medalion Touring,
TSX (LA-CL9) 04-08 5.6 / 2.5 1.5 / 1.5TNF075 $295.00 DF210, Sustec Pro S-0C, Medalion Touring,
TSX 09-12 6.6 / 3.5 0.8 / 1.0TNF164 $320.00 DF210, Sustec Pro S-0C, Medalion Touring,
Honda
Accord 94-97 4.9 / 2.3 1.8 / 1.5TNF009 $295.00 DF210, GF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Accord 08-11 6.6 / 3.7 1.3 / 1.3TNF144 $345.00 DF210, GF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Accord 08-11 6.8 / 3.7 1.5 / 1.6TNF145 $335.00 DF210, GF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Accord 4Cyl 98-02 4.1 / 2.5 1.2 / 0.8TNF023 $295.00 DF210, GF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Accord 4Cyl 03-07 5.6 / 2.5 1.5 / 1.5TNF075 $295.00 DF210, GF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Accord EX (CP2) 09-11 6.8 / 3.7 0.9 / 1.5TNF145 $335.00
Accord V6 98-02 4.1 / 2.5 1.2 / 0.8TNF023 $295.00 DF210, GF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Accord V6 03-07 5.6 / 2.5 1.3 / 1.0TNF075 $295.00 DF210, GF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Civic Coupe/Sedan 92-95 3.7 / 2.2 1.5 / 1.0TNF017 $270.00 DF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Civic Coupe/Sedan 96-00 3.7 / 2.2 1.5 / 1.0TNF017 $270.00 DF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Civic Hatchback (EK) 96-00 3.7 / 2.2 1.3 / 1.3TNF018 $270.00 DF210, GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
CR-Z (ZF1) 11-12 2.2 / 3.5 1.3 / 1.0TNF155 $310.00 Sustec Pro S-0C, CST Coilover, Sustec Z40, Medalion Touring, Concept G, Front Under Brace,
Fit 09-12 1.7 / 2.0 1.0 / 1.5TNF143 $295.00 DF210, GF210, Sustec Pro S-0C, CST Coilover, Sustec Z40, Medalion Touring, Concept G, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace,
Insight (ZE2) 10-11 2.2 / 3.3 1.0 / 1.3TNF148 $305.00 DF210, Sustec Pro S-0C, CST Coilover, Sustec Z40, Medalion Touring, Concept G, Front Under Brace,
Odyssey 00-04 3.0 / 6.5 1.2 / 1.2TNF071 $435.00
S2000 (AP1/AP2) 00-05 4.0 / 5.0 0.8 / 0.8TNF040 $280.00 GF210, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Infiniti
G25 11- 7.6 / 7.2 1.0 / 1.3TNF130 $345.00 Sustec Pro S-0C, Down Pipe, Medalion Touring, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
G35 Coupe (V35) 03-07 5.3 / 6.0 1.0 / 0.6TNF073 $280.00 DF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro FIVE, Sustec Z40, Down Pipe, Medalion Touring, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
G35 Sedan (V35) 03-06 5.3 / 4.8 1.6 / 0.9TNF082 $295.00 DF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro FIVE, Sustec Z40, Down Pipe, Medalion Touring, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
G35 Sedan 07-07 7.6 / 7.2 1.0 / 1.3TNF130 $345.00 DF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro FIVE, Sustec Z40, Down Pipe, Medalion Touring, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
G37 Coupe 08-11 7.6 / 7.2 1.0 / 0.7TNF130 $345.00 Sustec Pro S-0C, Down Pipe, Medalion Touring, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
G37 Sedan 09-11 7.6 / 7.2 1.0 / 1.3TNF130 $345.00 DF210, Sustec Pro S-0C, Down Pipe, Medalion Touring, Front Under Brace,
G37X 08-09 7.6 / 7.2 1.0 / 1.3TNF130 $345.00

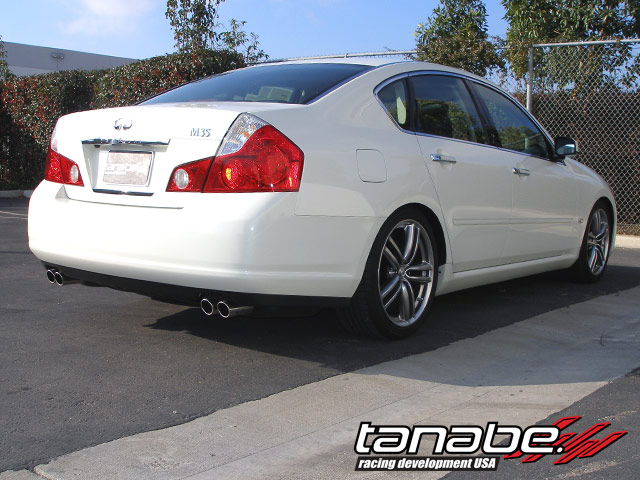

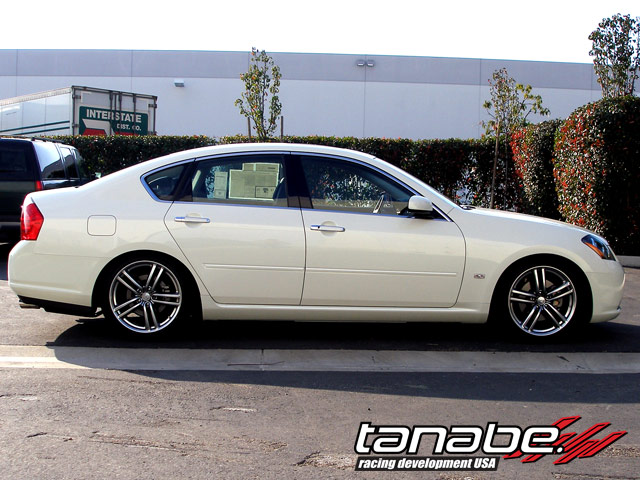

M35 05-07 6.4 / 8.7 1.5 / 1.0TNF118 $335.00 CST Coilover, Sustec Z40, Medalion Touring,

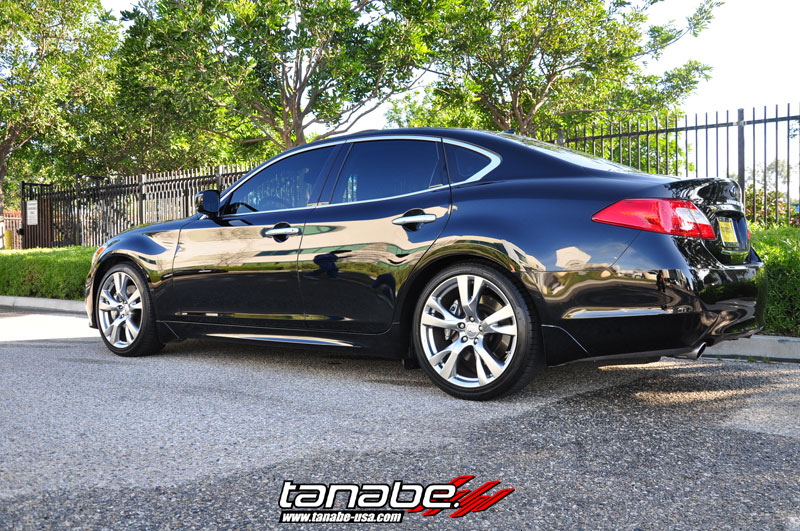

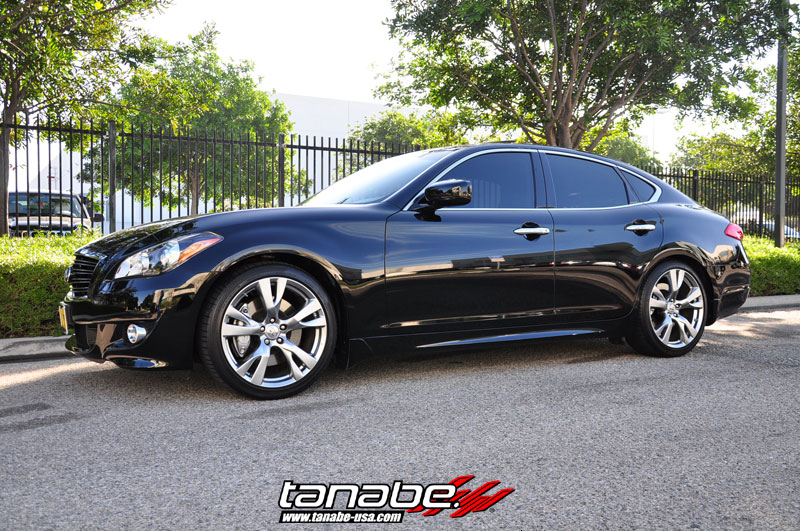

M37 10- 6.0 / 2.6 0.9 / 0.5TNF158 $415.00 Sustec Pro S-0C,
M45 06-07 6.5 / 8.8 0.9 / 1.1TNF117 $415.00 CST Coilover,
Lexus
CT200h (ZWA10L) 11-11 2.2 / 4.7 1.5 / 1.5TNF165 $335.00 Sustec Pro S-0C,
ES300 02-03 2.9 / 2.7 1.5 / 1.0TNF090 $345.00 DF210,
GS300 98-05 5.6 / 4.7 1.5 / 1.0TNF024 $345.00 DF210, Sustec Pro S-0C, Sustec Pro FIVE, CST Coilover, Sustec Z40, Medalion Touring,
GS300 06-06 4.6 / 5.8 1.3 / 0.9TNF112 $335.00 DF210, Sustec Pro S-0C, Sustec Pro FIVE, CST Coilover, Sustec Z40, Medalion Touring,
GS350 07-11 4.6 / 5.8 1.1 / 0.8TNF112 $335.00 DF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro FIVE, Medalion Touring,

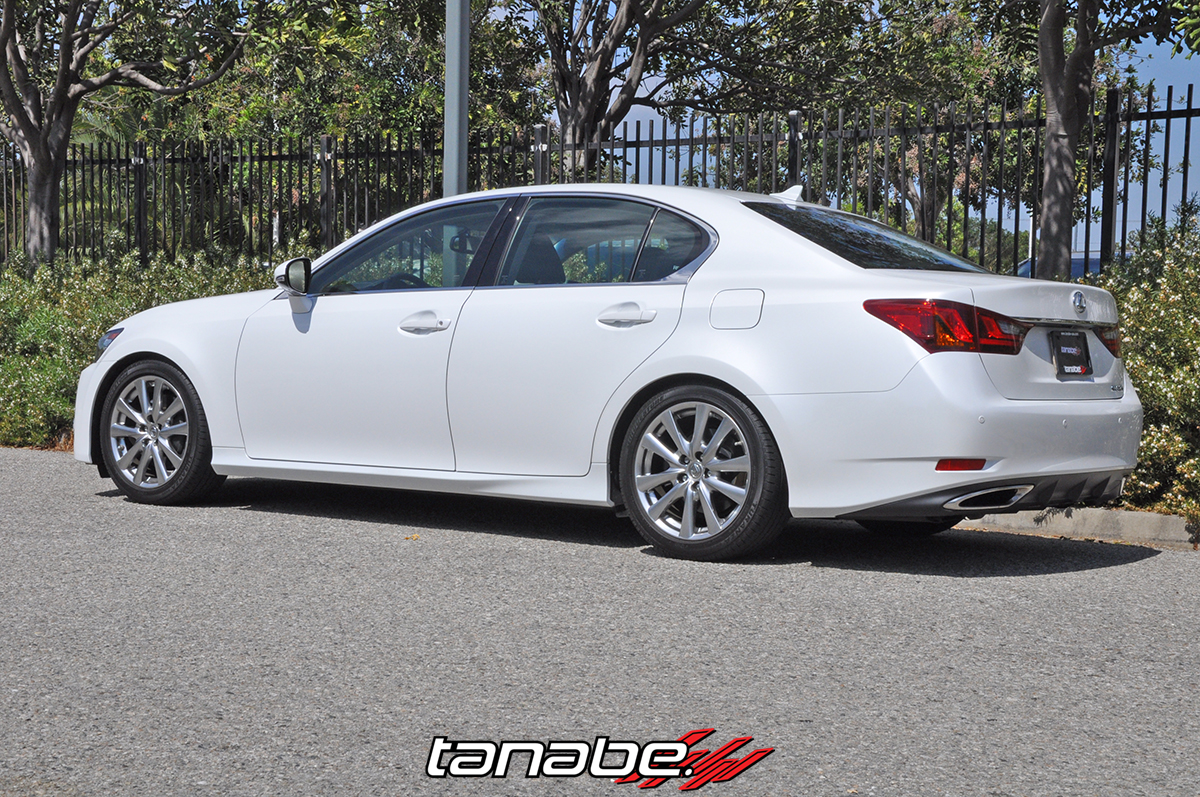

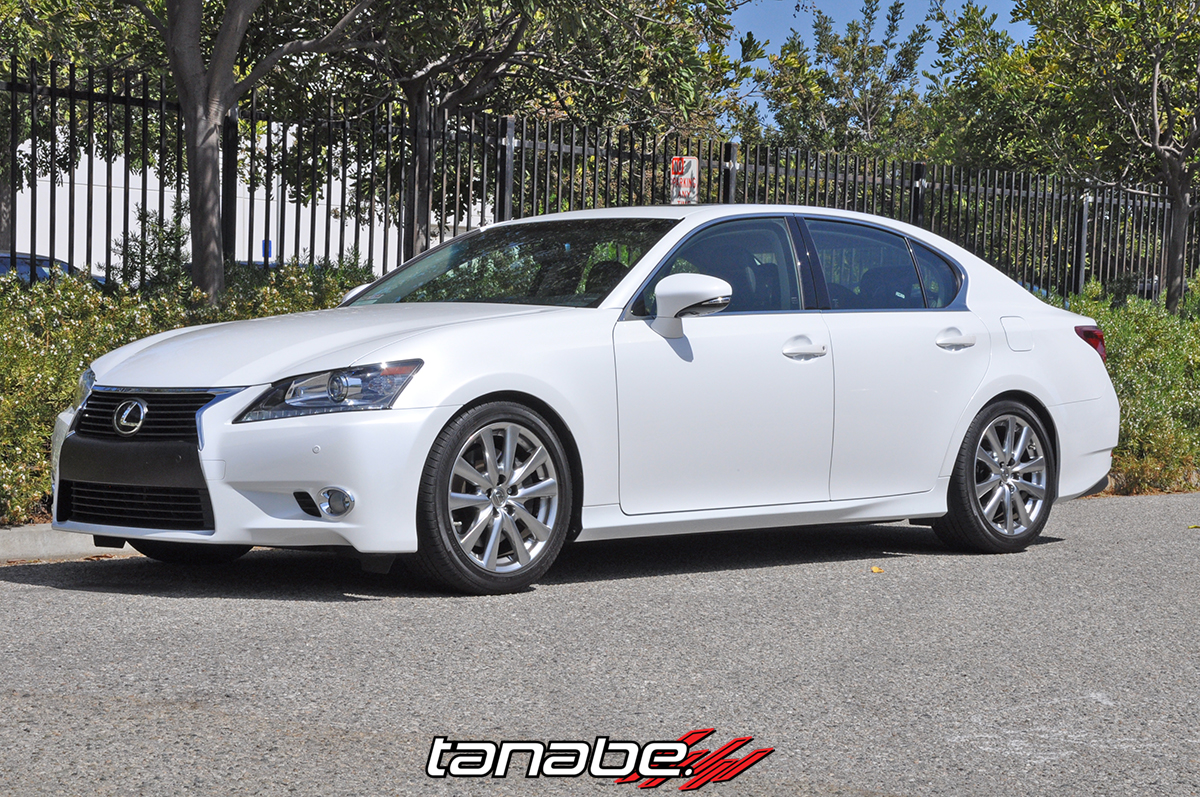

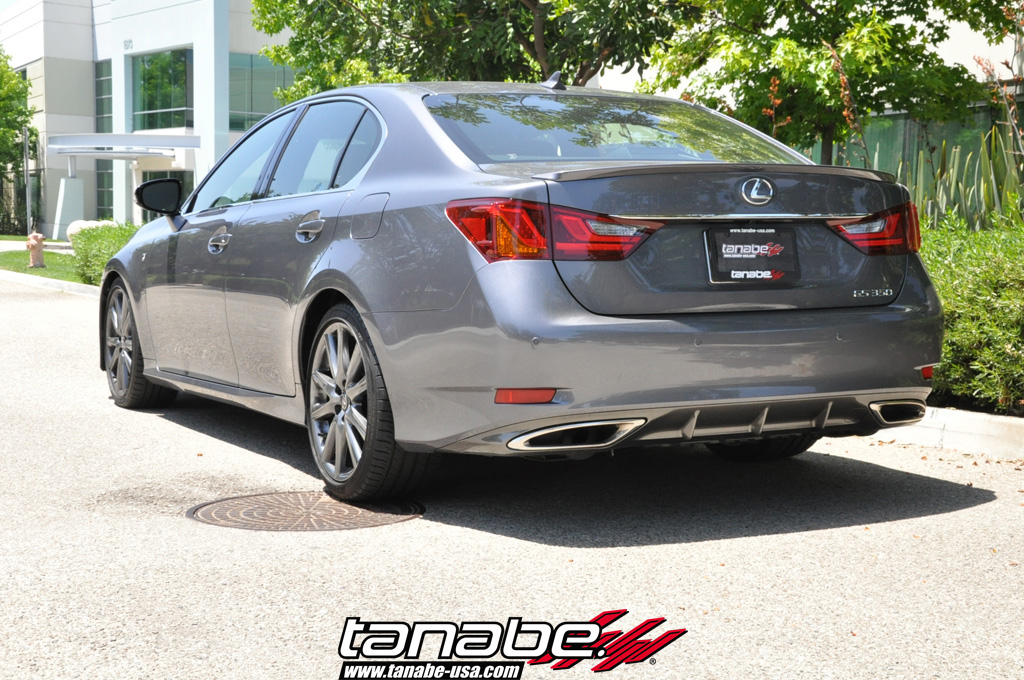

GS350 13-13 3.6 / 6.5 1.1 / 1.2TNF170 $345.00 DF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro FIVE, Medalion Touring,
GS400/430 98-05 7.3 / 5.7 1.2 / 0.8TNF24B $345.00 DF210, CST Coilover, Medalion Touring,
GS430 06-07 4.6 / 5.8 1.3 / 0.9TNF112 $335.00 DF210, Sustec Pro S-0C, Sustec Pro FIVE, Sustec Z40, Medalion Touring,
IS250 AWD 06-09 4.9 / 5.8 1.0 / 1.4TNF113 $335.00 Medalion Touring, Front Under Brace,

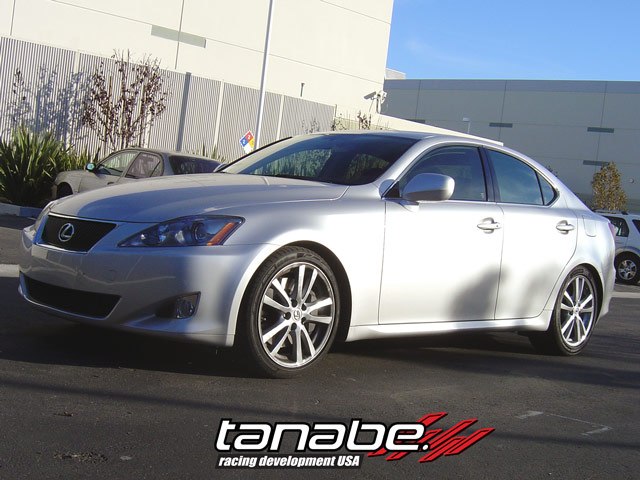

IS250 RWD 06-09 4.9 / 5.8 0.7 / 0.7TNF113 $335.00 DF210, Sustec Pro S-0C, Sustec Pro FIVE, CST Coilover, Sustec Z40, Medalion Touring, Front Under Brace,
IS300 (JCE10L) 00-05 5.2 / 4.1 1.5 / 1.0TNF038 $315.00 DF210, GF210, Sustec Pro S-0C, CST Coilover, Medalion Touring, Concept G, Strut Tower Bar Rear, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
IS350 06-11 4.9 / 5.8 0.8 / 1.0TNF113 $335.00 Sustec Pro S-0C, Sustec Pro FIVE, CST Coilover, Sustec Z40, Medalion Touring, Front Under Brace,
LS430 01-06 4.3 / 2.9 1.0 / 0.8TNF088 $345.00 DF210, Sustec Pro FIVE, CST Coilover, Sustec Z40,
LS460 07-07 3.1 / 2.7 1.5 / 0.8TNF135 $375.00
SC300 (JZZ30) 92-00 6.9 / 3.3 1.2 / 0.9TNF095 $335.00 CST Coilover, Medalion Touring,
SC400 (UZZ40) 92-00 6.9 / 3.3 - / - TNF095 $335.00 Medalion Touring,
SC430 02-04 5.1 / 4.7 0.9 / 0.9TNF089 $345.00
Mazda
Mazda 2 10- 2.0 / 1.6 0.8 / 0.9TNF159 $295.00 DF210, Sustec Pro S-0C, Front Under Brace,
Mazda 3, 2.3L 04-07 3.0 / 2.1 1.5 / 1.1TNF116 $295.00
Mazda 6 (V6) 03-07 3.9 / 2.9 1.5 / 0.7TNF091 $295.00 GF210, Concept G, Strut Tower Bar Front,
Mazdaspeed 3 08-08 3.0 / 2.1 1.0 / 0.5TNF116 $295.00 Medalion Touring, Strut Tower Bar Front, Front Under Brace,
Mazdaspeed 3 10-10 3.3 / 3.3 1.3 / 1.1TNF154 $295.00 Medalion Touring, Strut Tower Bar Front, Front Under Brace,
Protege 5 (BJFW) 01-05 2.4 / 1.9 1.2 / 1.0TNF051 $300.00 DF210, GF210, Medalion Touring,
RX-7 (FD3S) 93-97 4.7 / 3.6 0.9 / 0.8TNF013 $295.00 GF210, CST Coilover, Down Pipe, Medalion Touring, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
RX-8 (SE3P) 04-07 2.9 / 2.0 1.4 / 1.2TNF097 $270.00 GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro FIVE, Medalion Touring, Stabilizer Bar Front, Stabilizer Bar Rear,
Mitsubishi
Lancer 07-08 3.7 / 3.6 1.1 / 0.9TNF136 $295.00 DF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro SEVEN HD, CST Coilover, Sustec Z40, Down Pipe, Medalion Touring, Concept G, Concept G Blue Full Turboback, Concept G Blue (Catback Only), Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Lancer Evo5/6 (CP9A) 00-01 3.2 / 4.3 - / - TNF069 $270.00 DF210, GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro SEVEN HD, CST Coilover, Sustec Z40, Down Pipe, Medalion Touring, Concept G, Concept G Blue Full Turboback, Concept G Blue (Catback Only), Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Nissan
350Z (Z33) 03-07 5.6 / 6.3 1.2 / 1.2TNF063 $280.00 GF210, Sustec Pro S-0C, Sustec Pro SEVEN, Sustec Pro FIVE, Concept G, Strut Tower Bar Front, Front Under Brace,
370Z (Z34) 09-10 5.9 / 6.8 0.8 / 1.0TNF150 $395.00 GF210, Sustec Pro S-0C, Sustec Z40, Down Pipe, Medalion Touring, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,

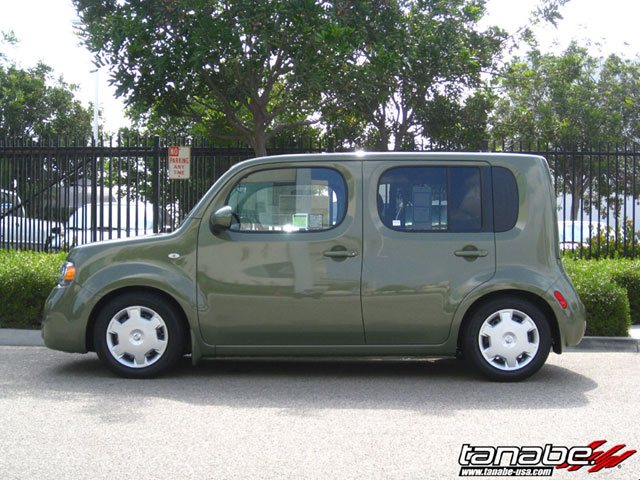

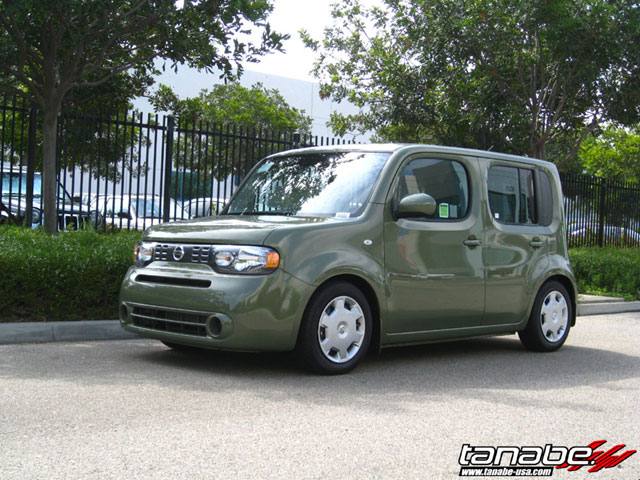

Cube (Z12) 09-10 2.2 / 4.1 1.5 / 1.4TNF147 $285.00 Sustec Pro S-0C, Strut Tower Bar Front, Front Under Brace,
Sentra (B15) 00-06 3.0 / 4.6 1.3 / 1.1TNF055 $270.00 DF210, GF210, Medalion Touring, Concept G, Front Under Brace,
Sentra SE-R 02-05 3.0 / 4.6 1.4 / 1.2TNF055 $270.00 DF210, GF210, Medalion Touring, Concept G, Front Under Brace,

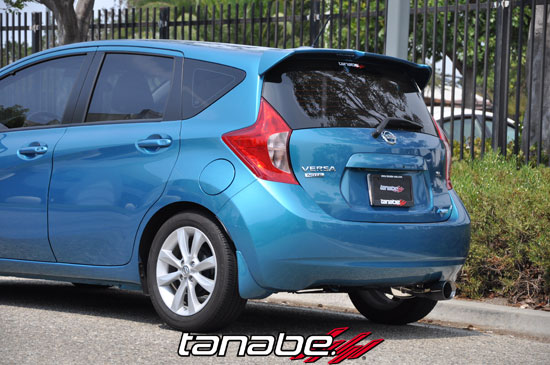

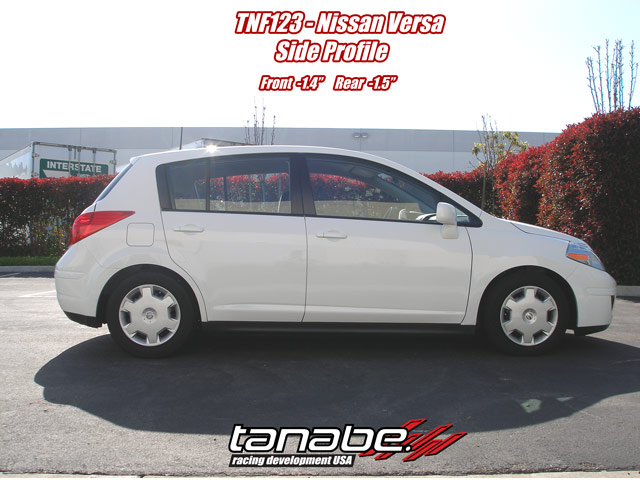

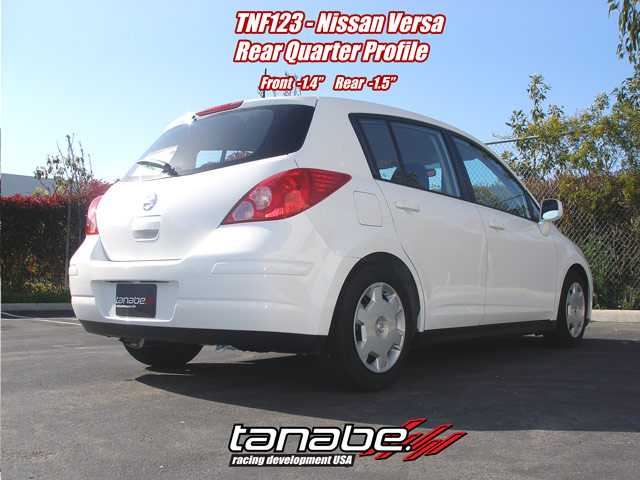

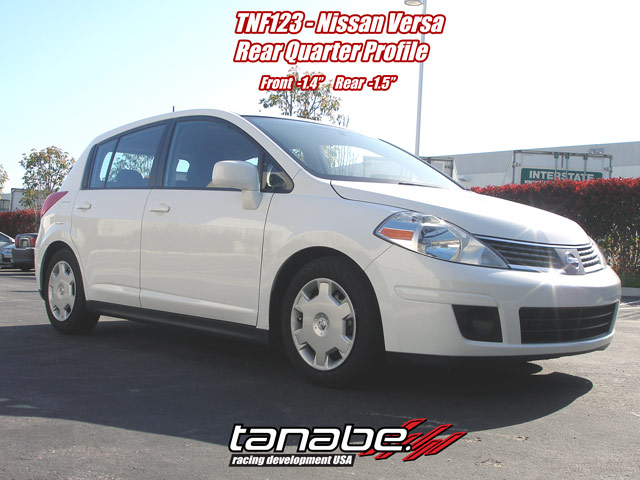

Versa 5 Door 07-07 2.2 / 3.5 1.4 / 1.5TNF123 $295.00 Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front,
Scion
iQ 12-12 2.5 / 2.8 1.8 / 1.7TNF163 $290.00 Strut Tower Bar Front, Front Under Brace,
tC 05-10 3.0 / 4.1 1.1 / 1.7TNF106 $280.00 DF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace,
xA 04-06 2.8 / 2.2 1.4 / 1.5TNF080 $295.00 DF210, Sustec Pro S-0C, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Rear Under Brace,
xB 04-07 2.1 / 2.5 1.7 / 1.2TNF081 $295.00 DF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace,
xB 08-12 2.6 / 2.6 1.0 / 1.7TNF129 $295.00 DF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace,
Subaru
Impreza (GC6/8) 98-01 3.0 / 2.4 1.3 / 1.1TNF031 $325.00 DF210, GF210, CST Coilover, Down Pipe, Medalion Touring, Concept G, Concept G Blue Full Turboback, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
Impreza WRX Hatchback (GV7) 11-12 4.1 / 3.2 0.5 / 0.6TNF140 $330.00 DF210, GF210, Sustec Pro S-0C, Medalion Touring, Concept G, Concept G Blue Full Turboback, Strut Tower Bar Front, Front Under Brace,
Impreza WRX STI Hatchback (GRB) 08-12 4.1 / 3.2 0.8 / 0.6TNF140 $330.00 DF210, GF210, Sustec Pro FIVE, CST Coilover, Sustec Z40, Down Pipe, Medalion Touring, Concept G, Concept G Blue Full Turboback, Strut Tower Bar Front, Front Under Brace,
WRX STI (GVB) 11- 4.1 / 3.2 0.6 / 0.4TNF140 $330.00 DF210, GF210, Sustec Pro S-0C, Sustec Pro FIVE, Strut Tower Bar Front, Front Under Brace,
Toyota
Celica (ZZT231) 00-05 2.6 / 3.4 1.5 / 1.5TNF036 $260.00 DF210, GF210, Sustec Pro S-0C, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Rear Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,
MR-2 Spyder (ZZW30) 99-05 1.5 / 2.2 1.2 / 1.2TNF039 $260.00 GF210, Down Pipe, Strut Tower Bar Front, Strut Tower Bar Rear, Front Under Brace, Stabilizer Bar Front, Stabilizer Bar Rear,

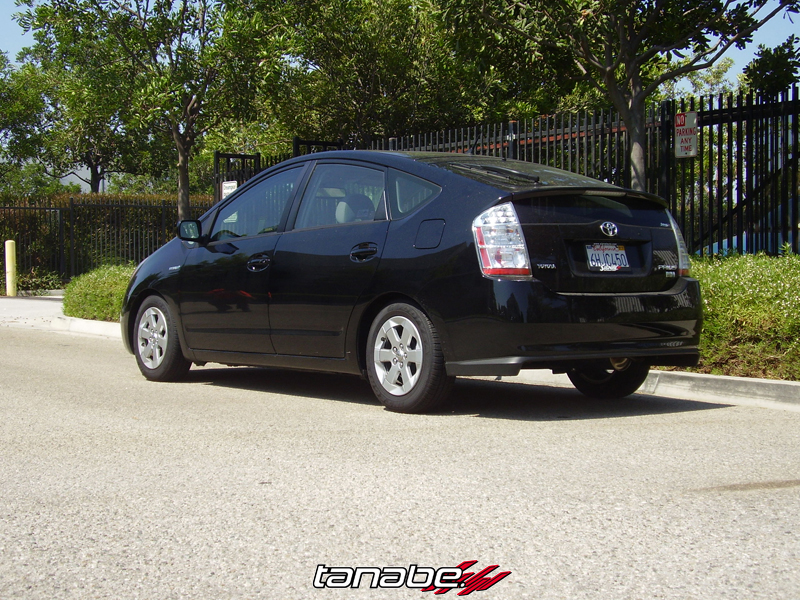

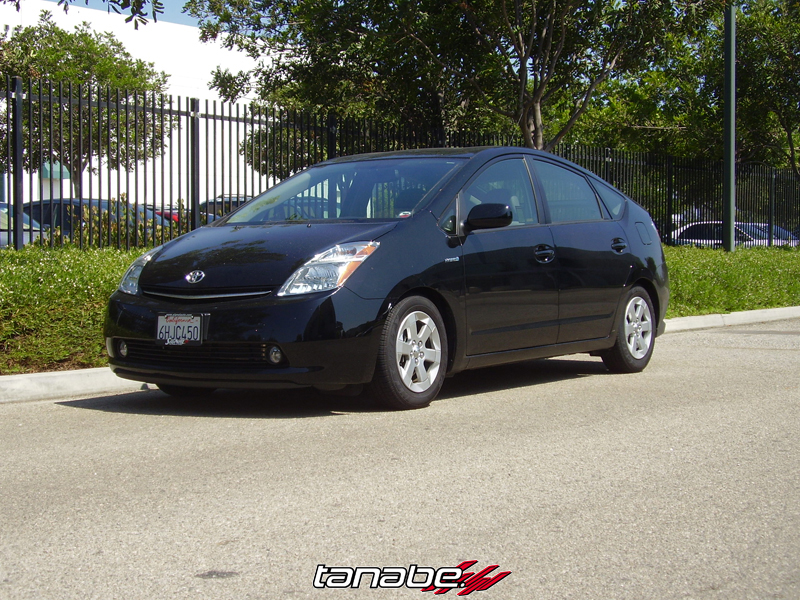

Prius 10-11 2.2 / 2.6 1.0 / 1.1TNF153 $325.00 DF210, Sustec Pro S-0C, CST Coilover, Sustec Z40, Medalion Touring, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front,

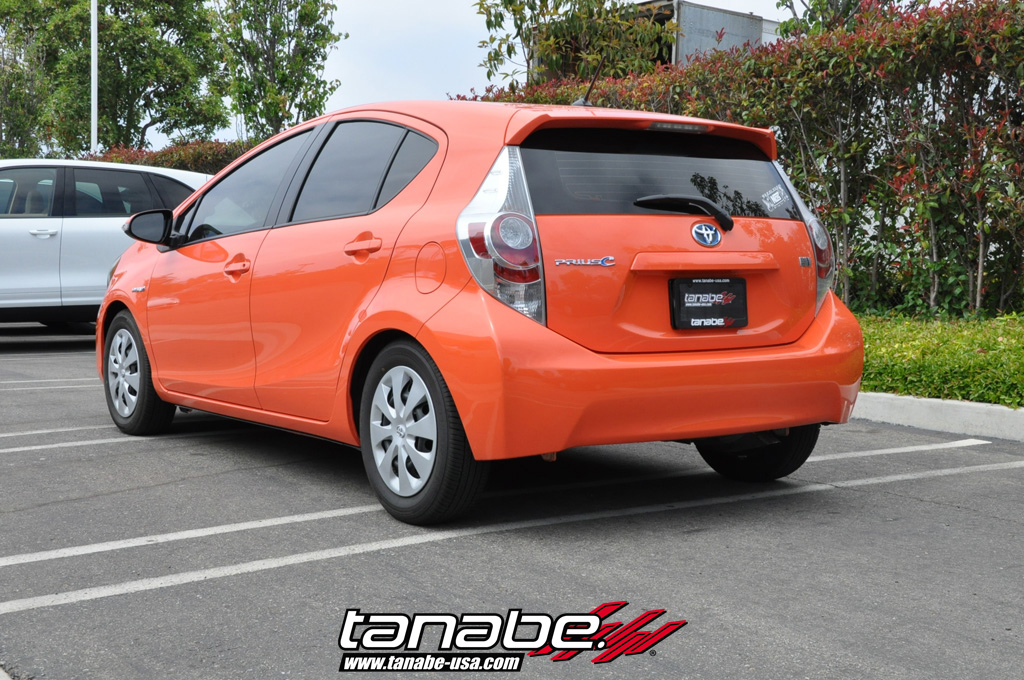

Prius C 12- 2.2 / 2.4 0.8 / 1.1TNF168 $325.00 DF210, Sustec Pro S-0C, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front,

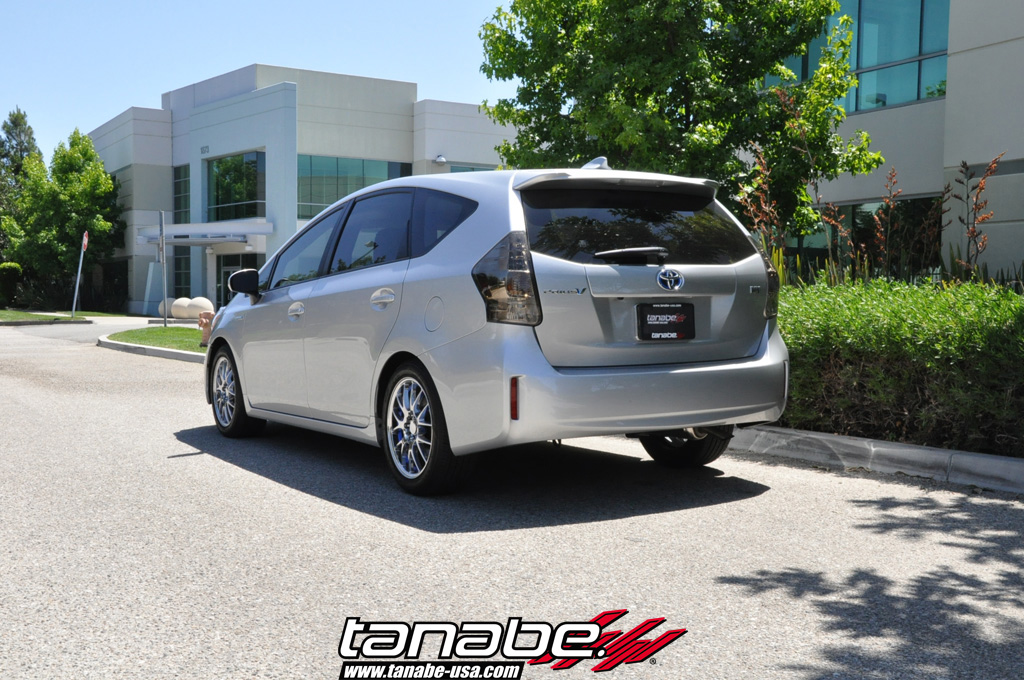

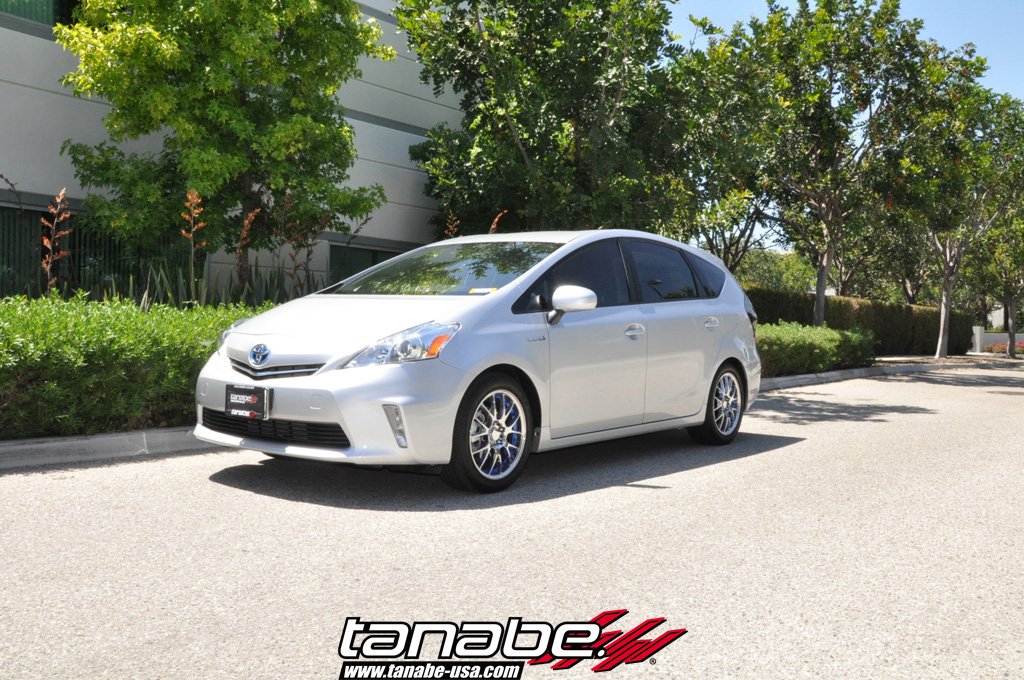

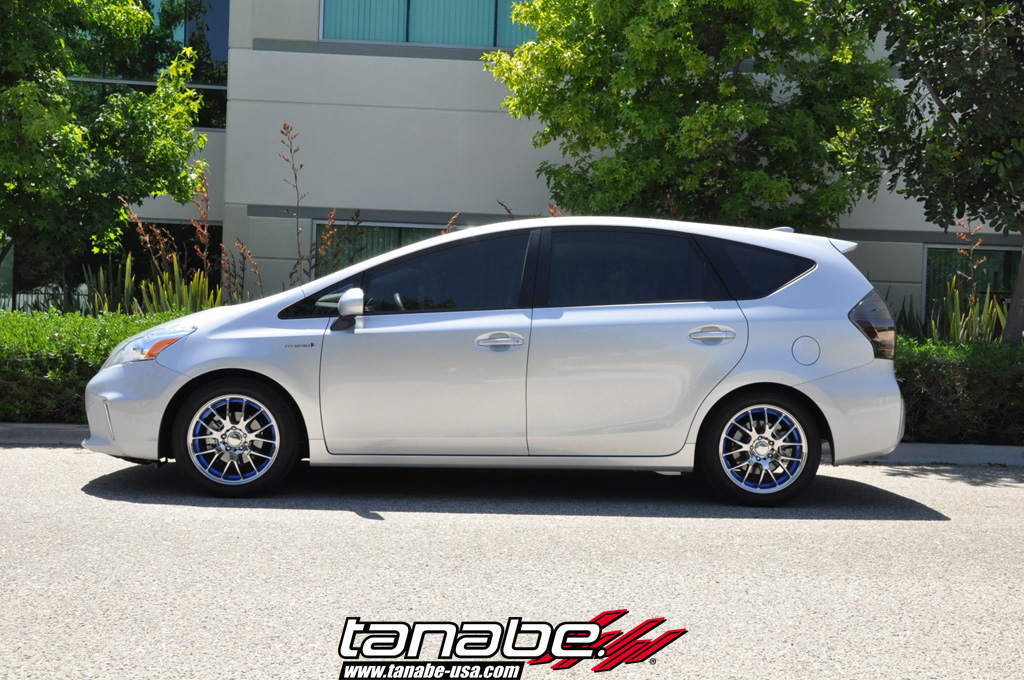

Prius V 12- 2.3 / 3.4 0.7 / 1.0TNF167 $325.00 Sustec Pro S-0C, Front Under Brace, Stabilizer Bar Front,
Vitz RS (NCP13) 01-05 2.2 / 2.2 0.8 / 0.4TNF099 $260.00 DF210, Strut Tower Bar Front, Front Under Brace, Rear Under Brace,
Yaris 07-11 2.5 / 2.2 1.2 / 1.6TNF121 $295.00 DF210, Sustec Pro S-0C, Sustec Z40, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front,
Yaris 12- 3.0 / 2.2 1.5 / 1.4TNF169 $295.00 DF210, Sustec Pro S-0C, Sustec Z40, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front,
Yaris 5-Door 09-10 2.5 / 2.2 1.3 / 1.5TNF121 $295.00 DF210, Sustec Pro S-0C, Sustec Z40, Medalion Touring, Concept G, Strut Tower Bar Front, Front Under Brace, Stabilizer Bar Front,

*Lowering data may differ slightly with each application
